Product details
A wiring kit that recreates the switching of the Fender Custom Shop La Cabronita “Especial” using a single push/pull volume pot in place of the costly S-1 switch — the same dual-voicing function for a fraction of the price. Works best with TV Filtertron-style pickups.
- Recreates the Custom Shop La Cabronita “Especial” S-1 switching with a standard push/pull pot — identical functionality without the price of an S-1 switch and knob.

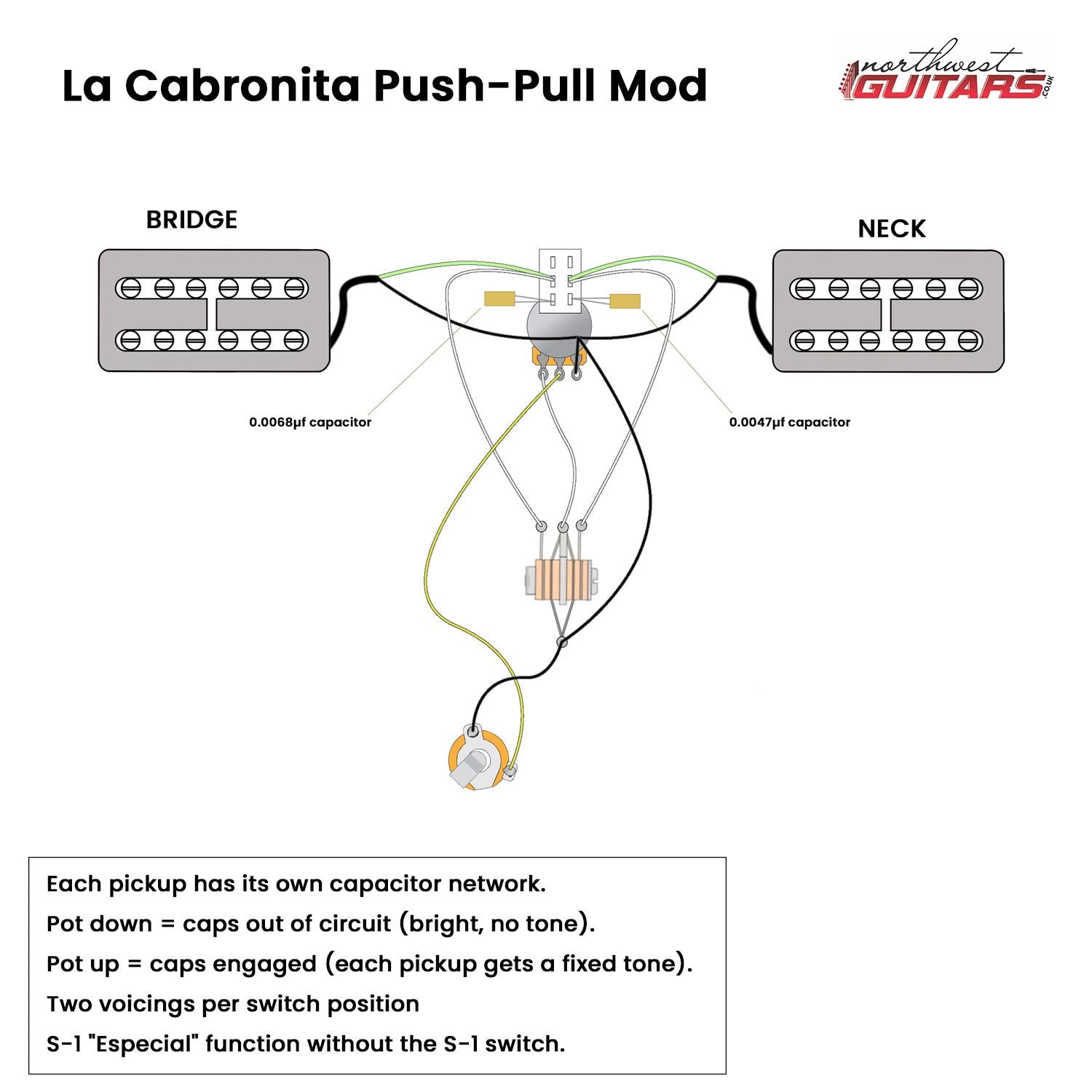

- Each pickup has its own independent capacitor network, so every blade-switch position gives you two voicings.
- Push/pull down: the capacitors are out of circuit — each pickup runs bright with no tone. Push/pull up: both cap networks engage — each pickup gets its fixed tone.
- Voicing stays independent per pickup — neck and bridge each keep their own character rather than sharing one global tone control.

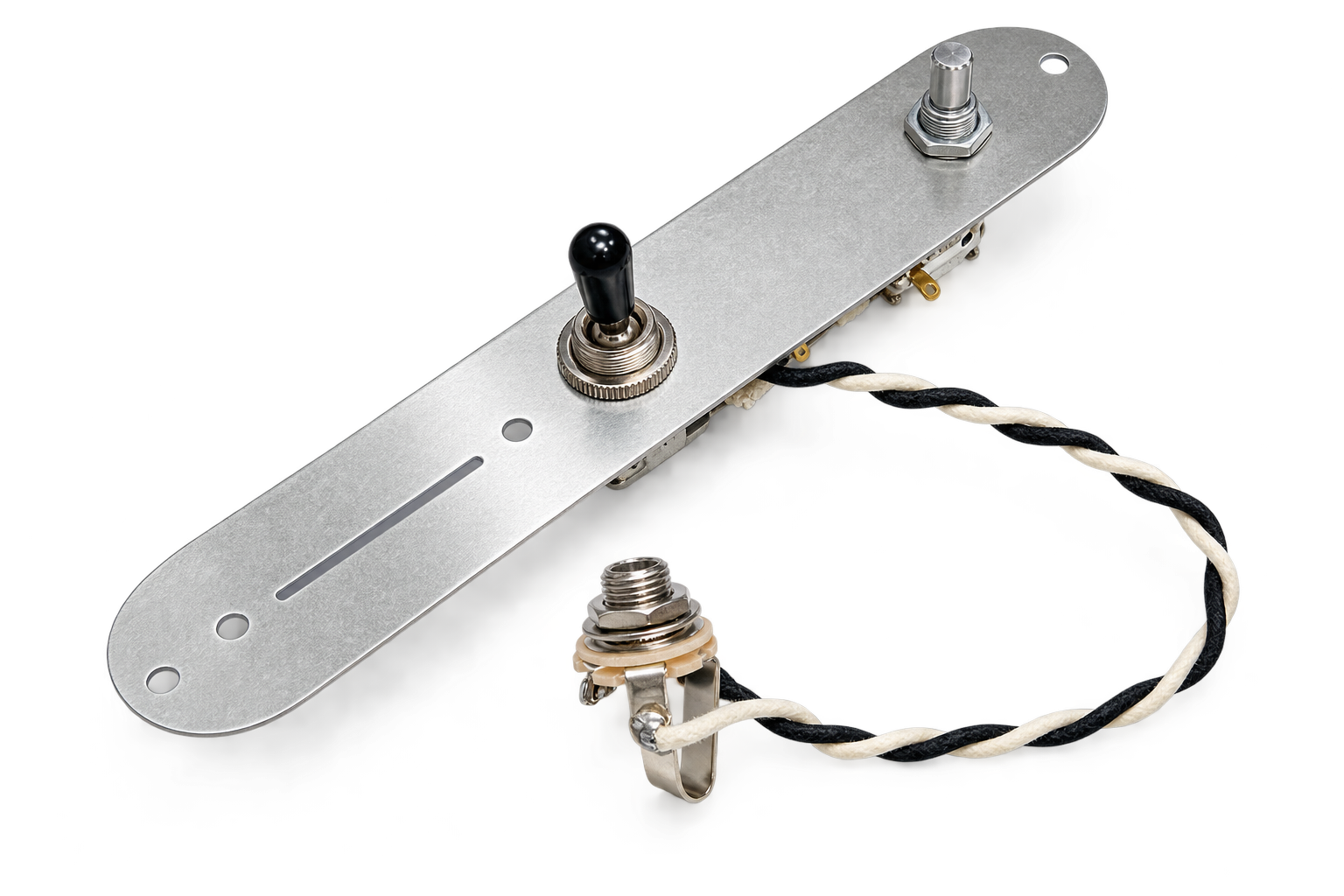

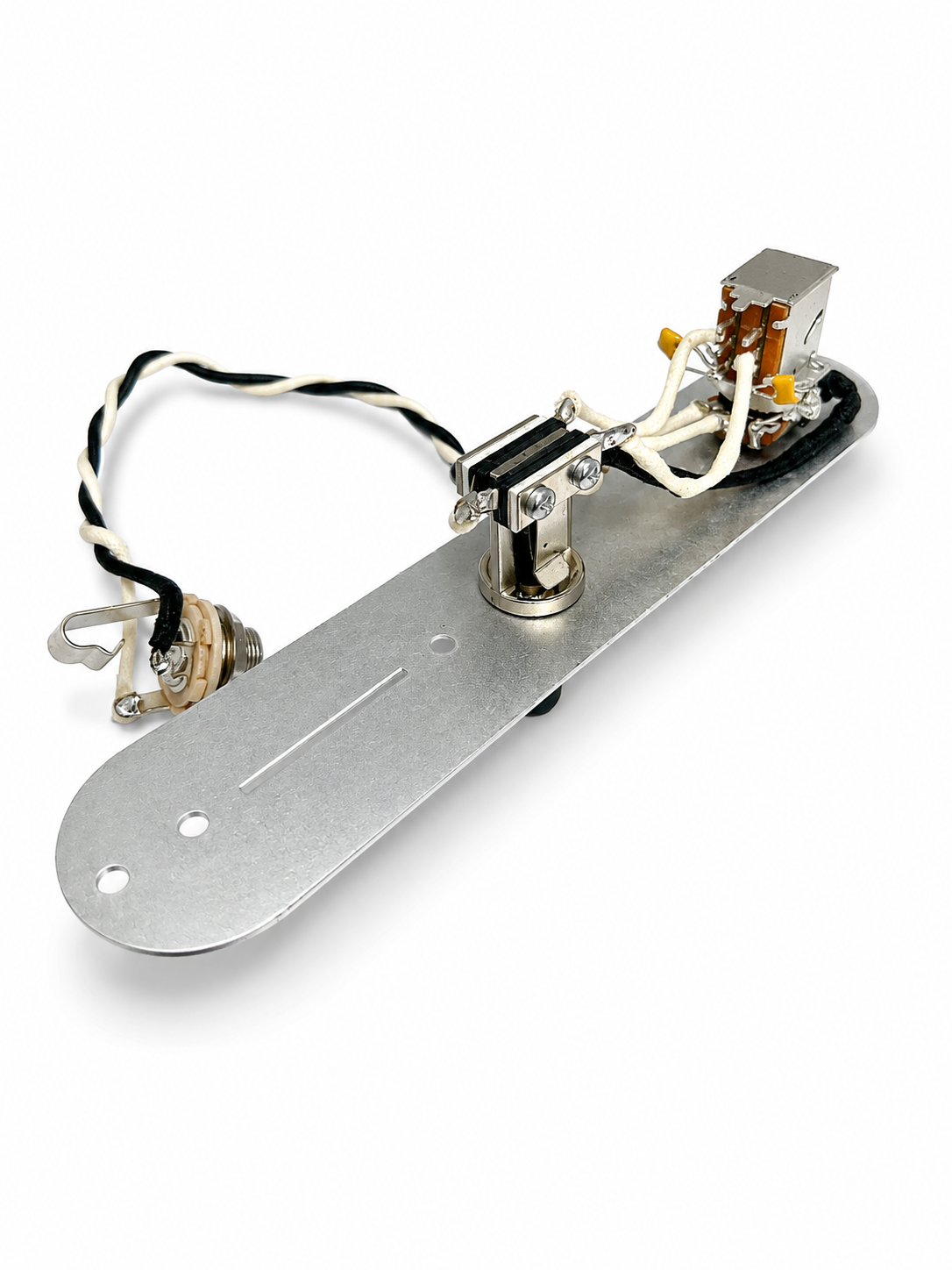

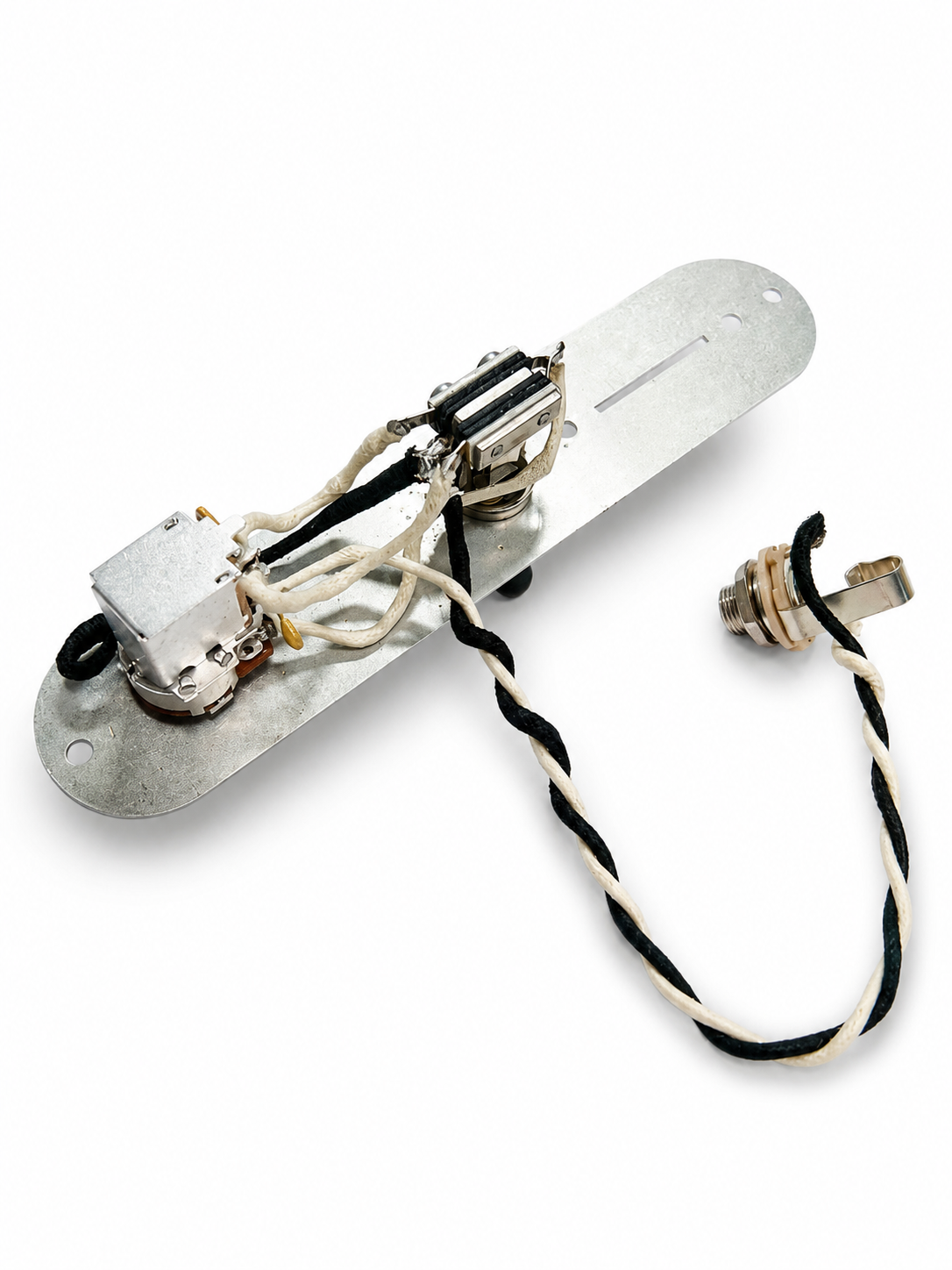

- Supplied as a complete kit: Alpha 500K push/pull volume pot, Switchcraft 3-way toggle switch, Switchcraft 1/4″ mono output jack and Gavitt vintage cloth-covered push-back wire.
Specifications
| Specification | Detail |
|---|---|
| Application | La Cabronita “Especial” style circuit (S-1 replacement) |
| Function | Dual voicing — two tones per switch position |
| Volume pot | Alpha 500K push/pull |
| Switch | Switchcraft 3-way toggle |
| Output jack | Switchcraft 1/4″ mono |
| Wire | Gavitt vintage cloth push-back |
| Capacitors | Ceramic — 0.0047µF and 0.0068µF, one per pickup network |
| Best with | TV Filtertron-style pickups |
| Fits | 2-pickup Cabronita / Telecaster-style guitars |
| Fitting | Soldering required — intermediate |
Add a knob to finish the job — browse our 1/4″ screw-fit knobs.
