Schaller
Schaller Stop Tailpiece
Shipping & Returns
Order before 3pm for same day despatch Monday-Friday
Free shipping on UK orders over £199*
Click & Collect available Mon-Fri until 4pm.
See our full shipping/returns options here
Product details

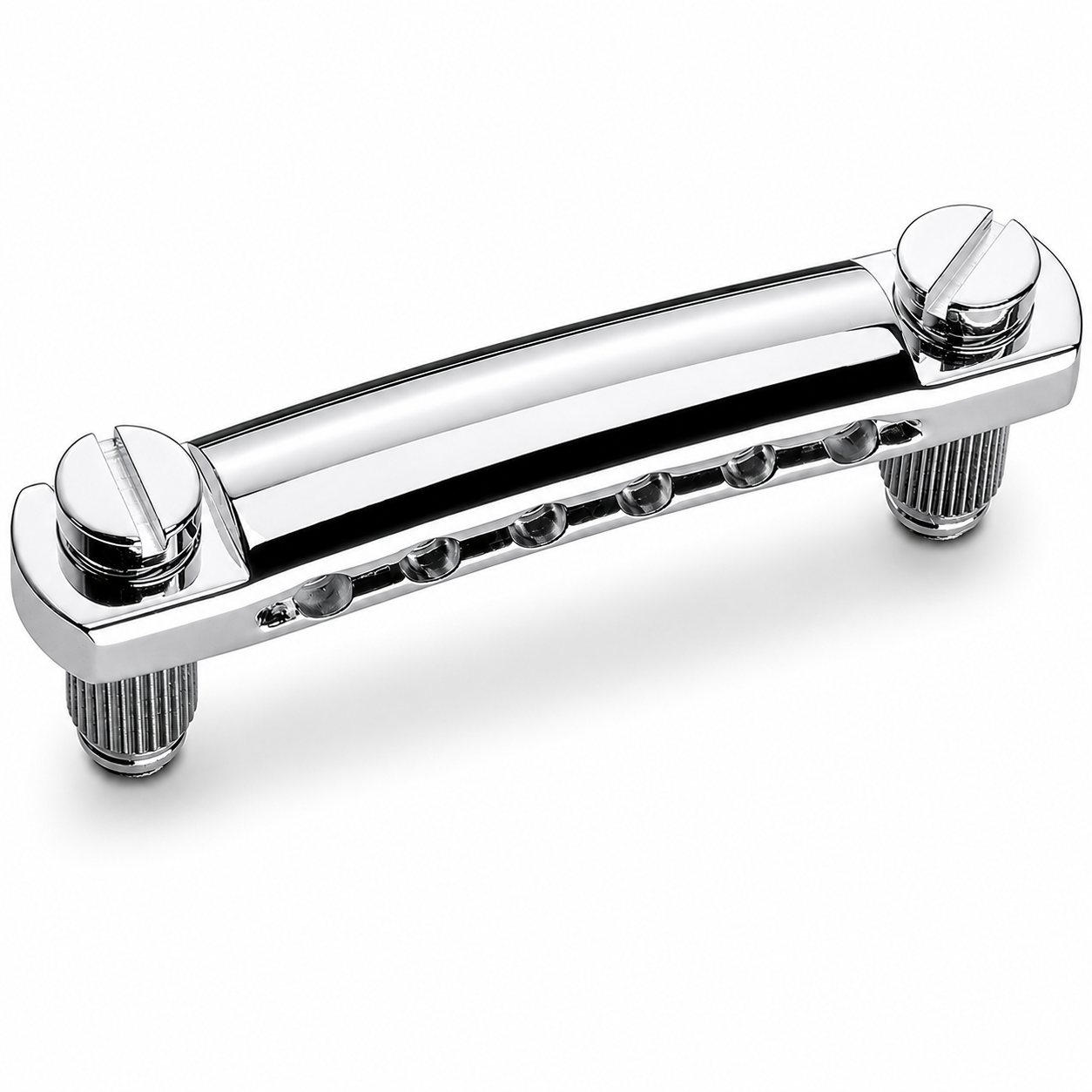

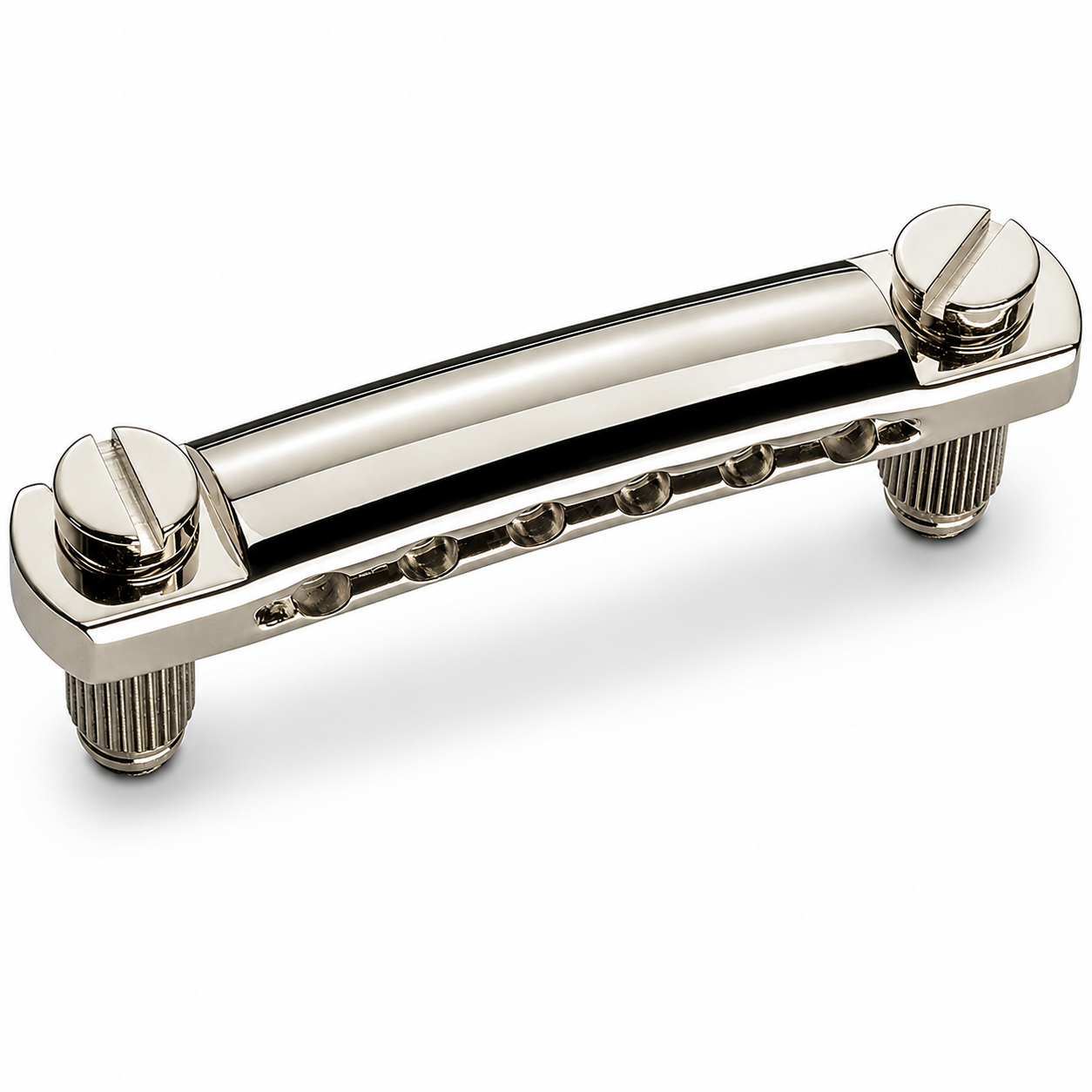

The Schaller Stop Tailpiece is a precision-engineered anchor designed to deliver solid string coupling, reliable tuning stability and clean sustain. Usually installed straight — parallel to the frets — it pairs perfectly with Schaller’s Tune-O-Matic style bridges for a complete, high-quality bridge and tailpiece setup.
Supplied complete with press-in bushings and height-adjustment screws, it’s a straightforward, direct fit for Les Paul® style and other guitars using a standard stop tailpiece arrangement.
Compatible Bridges
This tailpiece is designed to work alongside the following Schaller bridges:
- STM roller bridge
- GTM with brass saddles
- GTM with titanium saddles
Key Features
- Installed straight (parallel to the frets) for solid, balanced string coupling
- Height-adjustable for precise string break angle over the bridge
- Handles string gauges up to 80
- String radius of 12″, usable for fretboards from 10″ to 14″
- Also suitable for left-handed models
- Supplied complete with press-in bushings and height-adjustment screws
Scope of Supply
- 1 × stop tailpiece
- 2 × press-in bushings, 5/16″ 24 UNF
- 2 × height-adjustment screws, 5/16″ 24 UNF

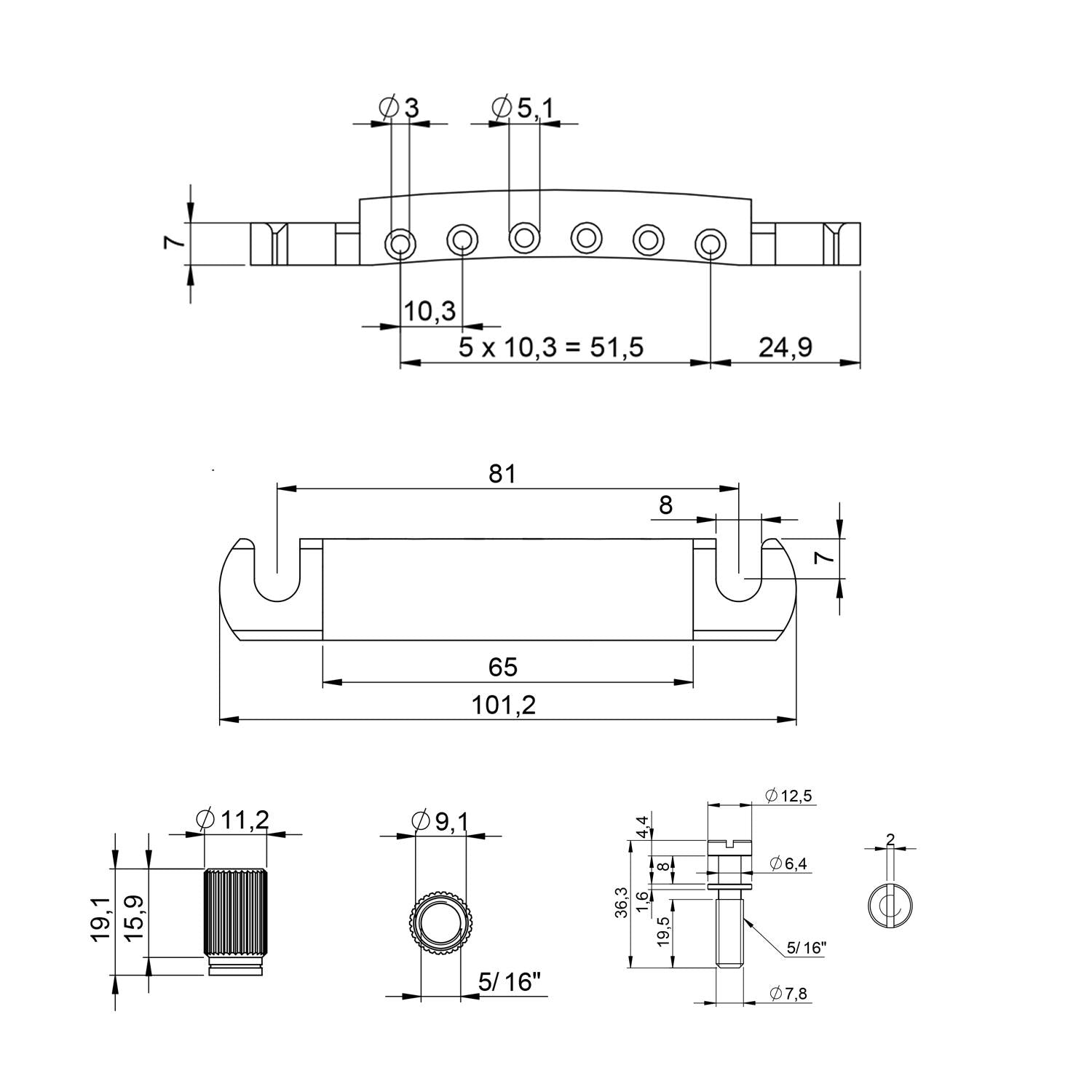

Technical Specifications
| Specification | Detail |
|---|---|
| Height adjustment screw spacing | 81 mm |
| String spacing (E–e) | 51.5 mm |
| String radius | 12″ (usable 10″ – 14″) |
| Maximum string gauge | 80 |
| Weight | 78 g (122 g with accessories) |
| Handed | Suitable for left-handed models |
| Included accessories | 2 × bushings & 2 × height-adjustment screws (5/16″ 24 UNF) |
Les Paul is a protected trademark owned by Gibson Brands, Inc.
• , , , , ,
