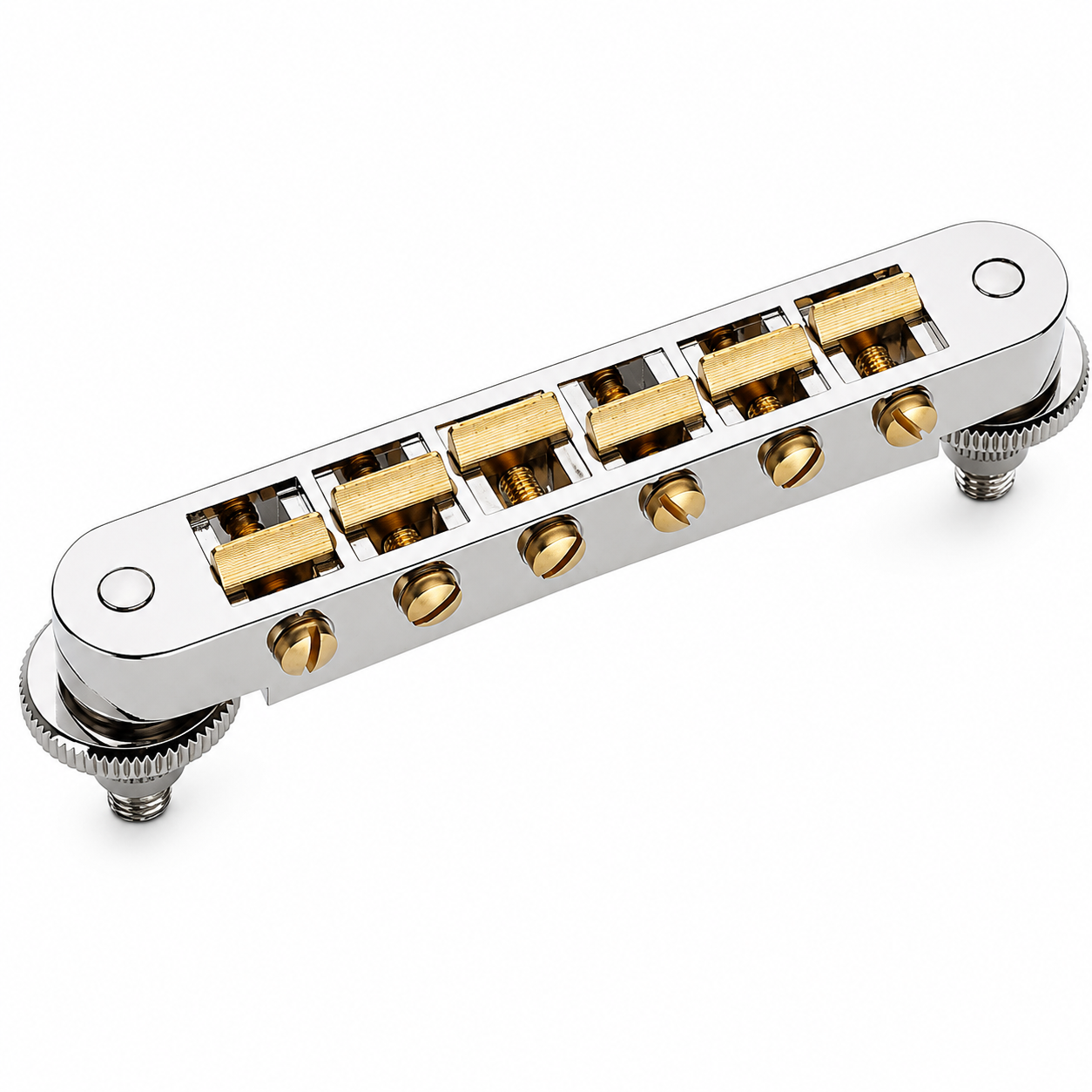

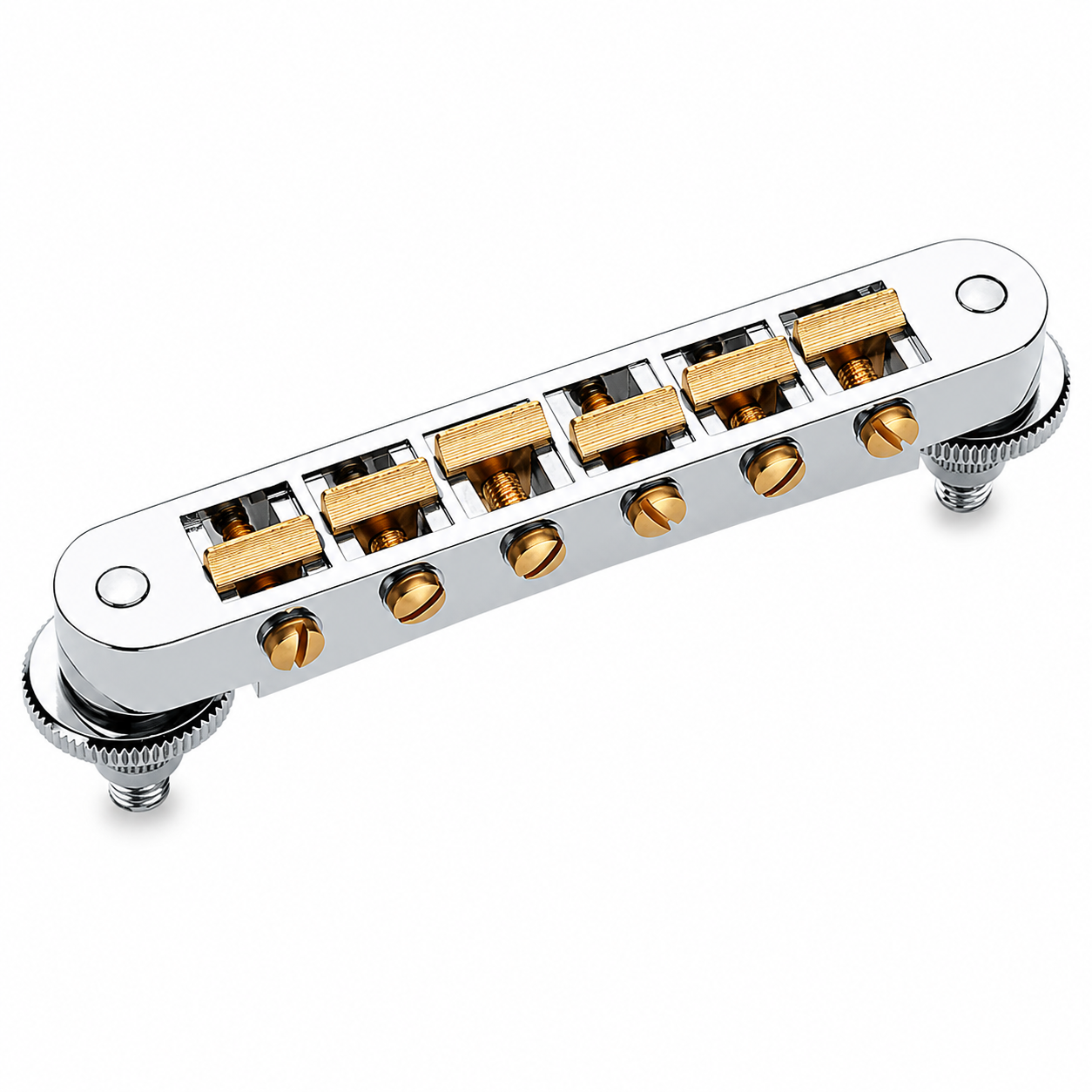

Schaller GTM Nashville Tune-o-matic Bridge (Reverse)
Shipping & Returns
Order before 3pm for same day despatch Monday-Friday
Free shipping on UK orders over £199*
Click & Collect available Mon-Fri until 4pm.
See our full shipping/returns options here
Product details
The Schaller GTM is a premium Tune-O-Matic style bridge engineered for superior tone, precision intonation and rattle-free performance. Supplied here with 1 pair of GTM studs and inserts (M5 metric), it’s a direct upgrade for Les Paul® style and other Tune-O-Matic equipped guitars.
At the heart of the GTM are uncoated, unnotched string saddles milled from solid Pure Sound brass — a material chosen for its excellent sound transmission and ideal balance of softness and resistance. Because the saddles arrive unnotched, you set your own individual string spacing and string action, then finish the slots to taste with a saddle file for perfectly smooth transitions.
Special retainer springs hold everything firmly in place, eliminating the bridge rattle and string buzz common to traditional designs. The result is a form-fit assembly with improved string contact that supports playability, intonation and sustain in equal measure.
Key Features
- Compatible with post spacings from 74.0 – 74.5 mm
- Special retainer springs prevent bridge rattle and string buzz
- Uncoated, unnotched saddles milled from solid Pure Sound brass for excellent sound transmission
- Unnotched saddles let you set individual string spacing and string action
- Brass saddles are easily customised by the guitar maker with a saddle file
- Form-fit support with improved string contact — better playability, intonation and sustain
- Also suitable for left-handed models
- Supplied with 1 pair of GTM studs and inserts M5 (metric)
Choosing Your Options
Please note the selection options in the product configurator above:
- Surface colour — choose your finish
- Non-reverse — intonation screws point towards the pickups
- Reverse — intonation screws point towards the tailpiece
The exact slant angle for installation should be determined by your luthier according to the scale length and string gauge of the instrument.
Advantages of Pure Sound Brass
- Its softness makes brass an ideal saddle material, offering sufficient resistance to the strings
- Uncoated brass saddles (plain or notched) are easily customised with a saddle file for smooth transitions
- Form-fit support and improved string contact supports playability, intonation and sustain

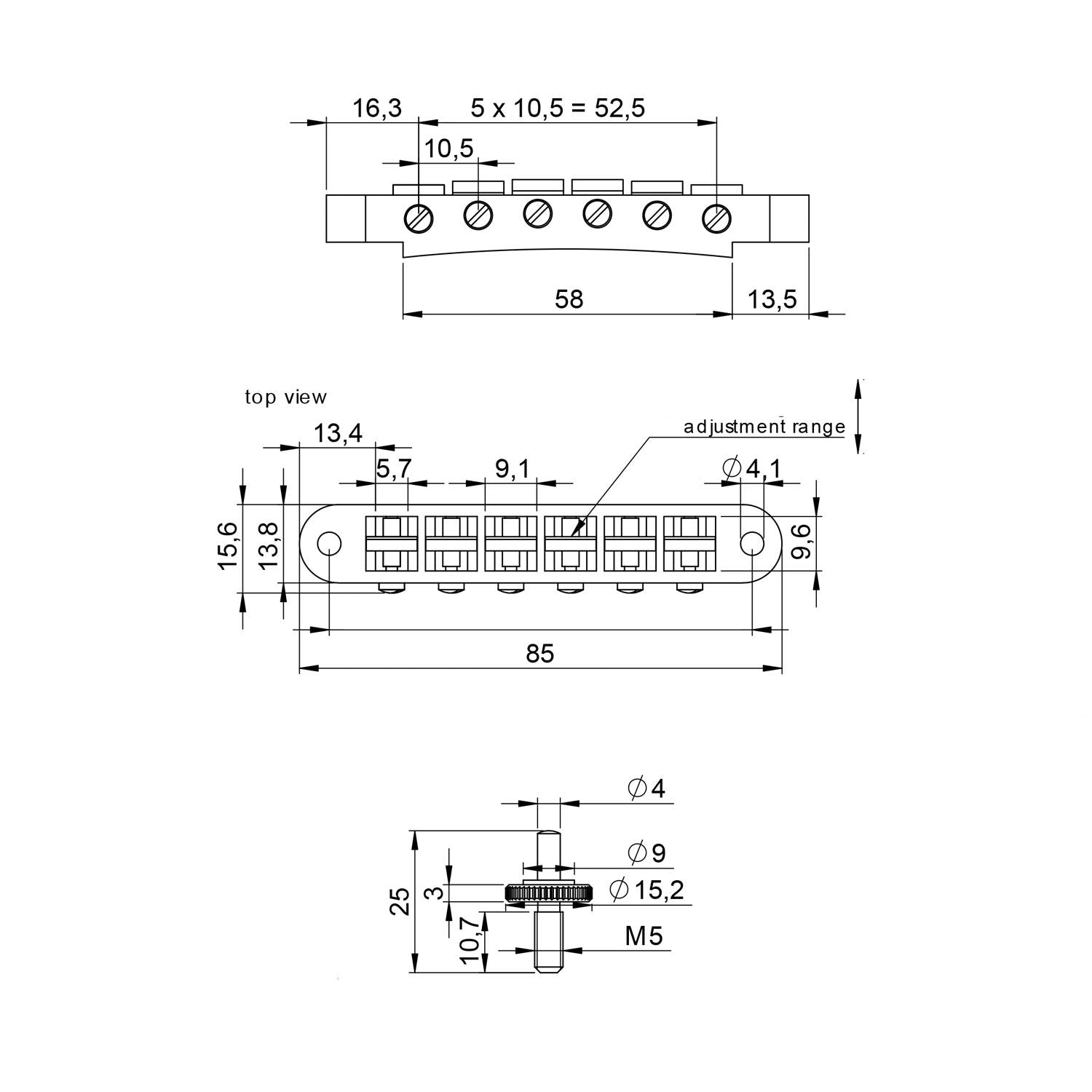

Technical Specifications
| Specification | Detail |
|---|---|
| Post / height adjustment screw spacing | 74.0 – 74.5 mm |
| String spacing (E–e) | 52.5 mm |
| String radius | 12″ – 14″ (playable 10″ – 16″) |
| Min. G/d string height above body | 13.7 mm |
| Weight | 53 g (70 g with accessories) |
| Saddle material | Pure Sound brass, uncoated & unnotched |
| Handed | Suitable for left-handed models |
| Included accessories | 1 pair GTM studs & inserts M5 (metric) |
Les Paul is a protected trademark owned by Gibson Brands, Inc.
• , , , , ,
