Les Paul Coil Split Wiring Kit - Switchcraft Toggle, Orange Drop Caps

£69.00
Tax included. Shipping calculated at checkout.
LPCS_01_D
Switch Type
Capacitor Type

1 in stock
🚚 Order within the next 2 hours, 15 minutes for delivery by 07 Oct, 2025.
Shipping & Returns

Order before 3pm for same day despatch Monday-Friday

Free shipping on UK orders over £199*

Click & Collect available Mon-Fri until 4pm.

See our full shipping/returns options here

Switch Type
Capacitor Type

Product details

Upgrade your standard Les Paul wiring with our premium Les Paul® Coil Split wiring kit that enhances your guitar with an additional dimension.

Featuring CTS push-pull pots, our kit can split humbuckers into single coil tones when the pots are pulled up.

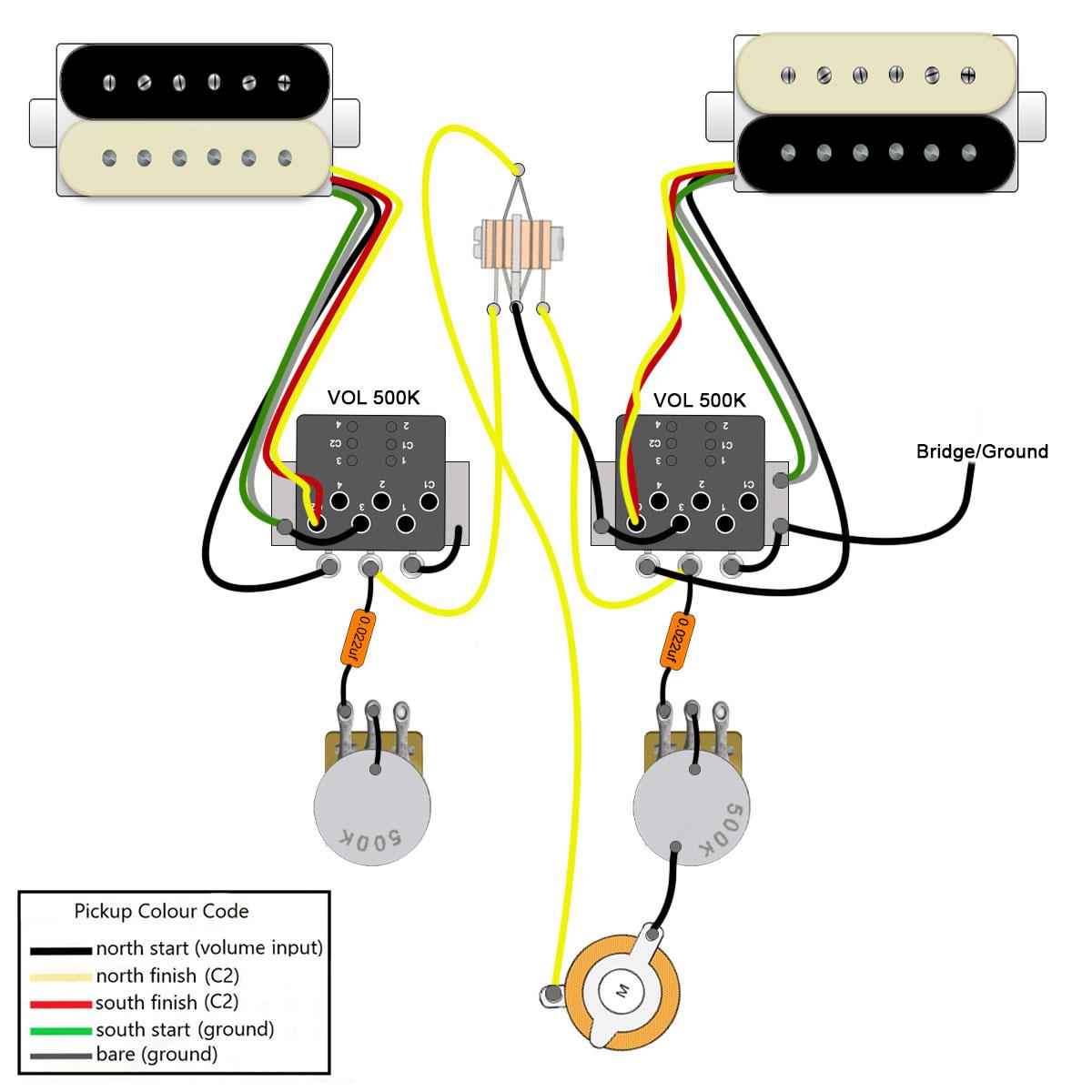

Our kit provides all the necessary components for a complete re-wire and only utilizes top-quality materials. It also includes a comprehensive wiring diagram, and you can refer to our step-by-step wiring guide or watch the below video for wiring instructions.

The Les Paul Coil-Split Wiring Kit includes:

  • 2 x 500k Push-Pull pots (10% tolerance)
  • 2 x 500k Matched audio taper pots (10% tolerance)
  • 2 x .022uf Capacitors (Orange Drop or Paper in Oil)
  • 1 x Switchcraft USA toggle switch - short or long frame (long frame supplied with Deep thread nut)
  • 5ft Gavitt Braided Push back hookup wire
  • 1 x Switchcraft USA 1/4'' jack socket
  • 50cm tinned copper wire
  • Heat shrink tubing
