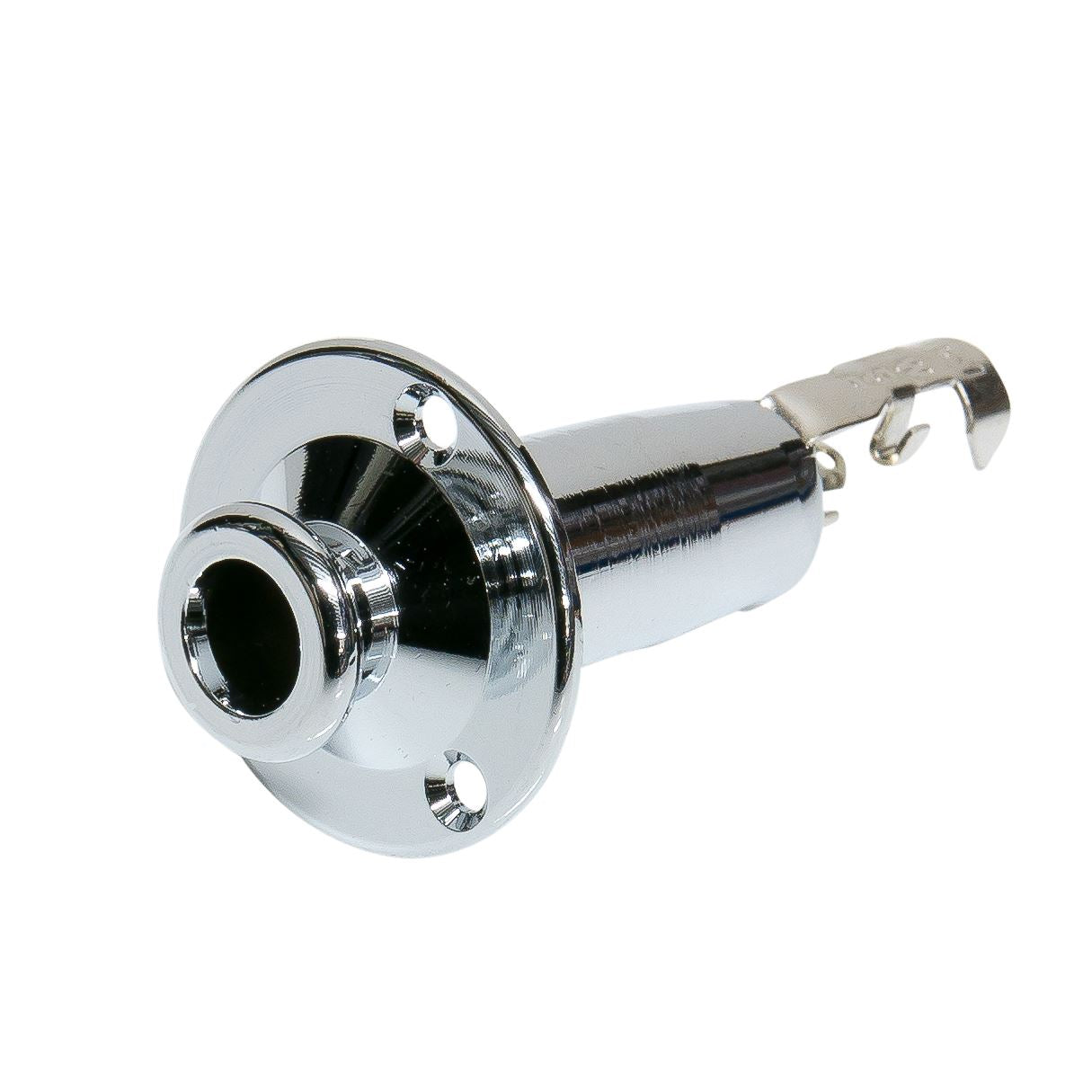

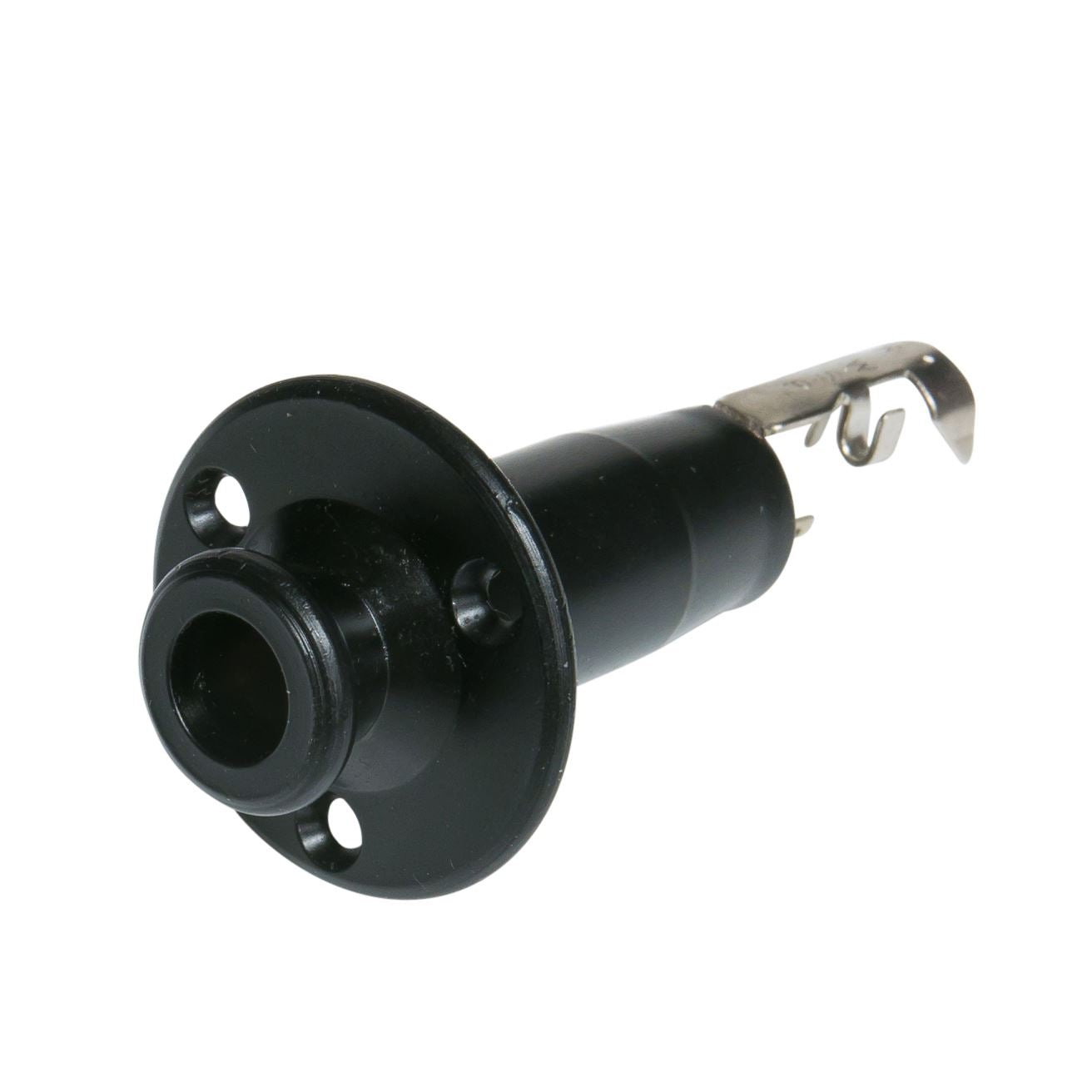

1/4" Mono/Stereo Input Jack/Strap Button for Electro Acoustic Guitars

LJ35 Acoustic Output Jack/Strap Button is a dual-function marvel designed to seamlessly integrate with a variety of acoustic guitar models. Offering a combined input socket and strap button, this unit elevates the convenience factor by eliminating the need for separate components.

Features:

• Serves as both an input socket and a strap button.
• The LJ35 can be wired as either a stereo or a mono jack.
• Provided with colour-matched screws.

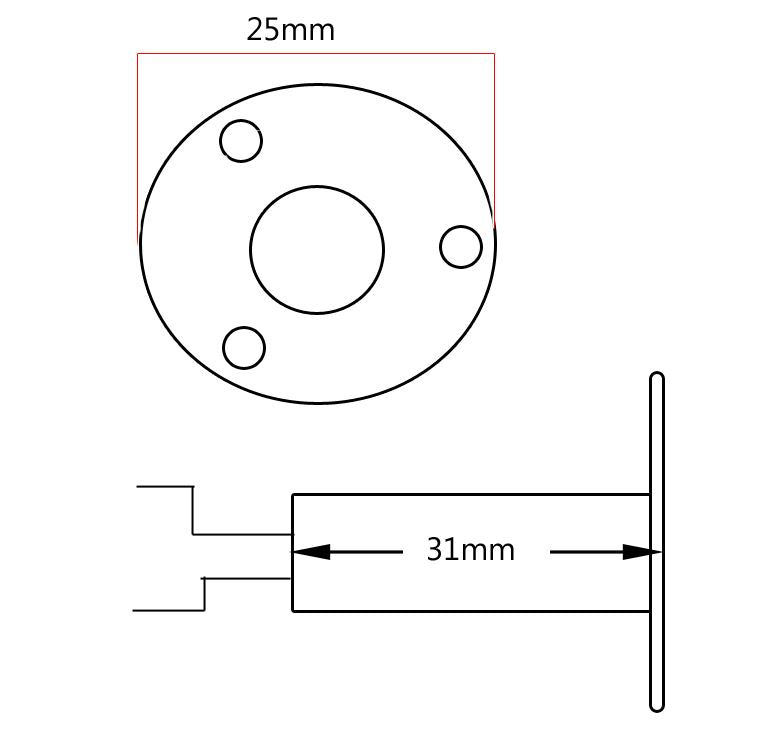

• Requires a 1/2" (12.7mm) pilot hole.

Mono Wiring
Longer terminal - ground
Shorter Terminal - Live

Stereo Wiring
Longer Terminal - Sleeve
MediumTerminal - Ring
Shorter Terminal - Tip
