5-Hole Telecaster Compatible Pickguard

Product details

5-hole Vintage 50's style Scratchplate to fit most USA, Mexican Telecasters

Early 50's scratchplates were typically made out of Bakelite material. Celluloid materials were introduced a little later, typically single-ply in either white or black.

The pickguard was fixed to the body with 5 mounting screws, and there were no holes for mounting the neck pickup (the pickup was mounted directly into the pickup cavity on the body).

We've modelled our 5 hole scratchplates on this 1950's design, but with a wider variety of colours and a choice of single or 3-ply.

Specification

3 ply scratchplates: 2.4mm thick

1 ply scratchplates: 2.0mm thick

Before purchasing please click here to download our size & fit template

• 5 hole Telecaster pickguard compatible with USA, MIM, JP Models
• Vintage spec, without neck pickup mounting holes
• 3-ply models: 2.4mm thick
• 1-ply models: 2.0mm thick
• Screws not included

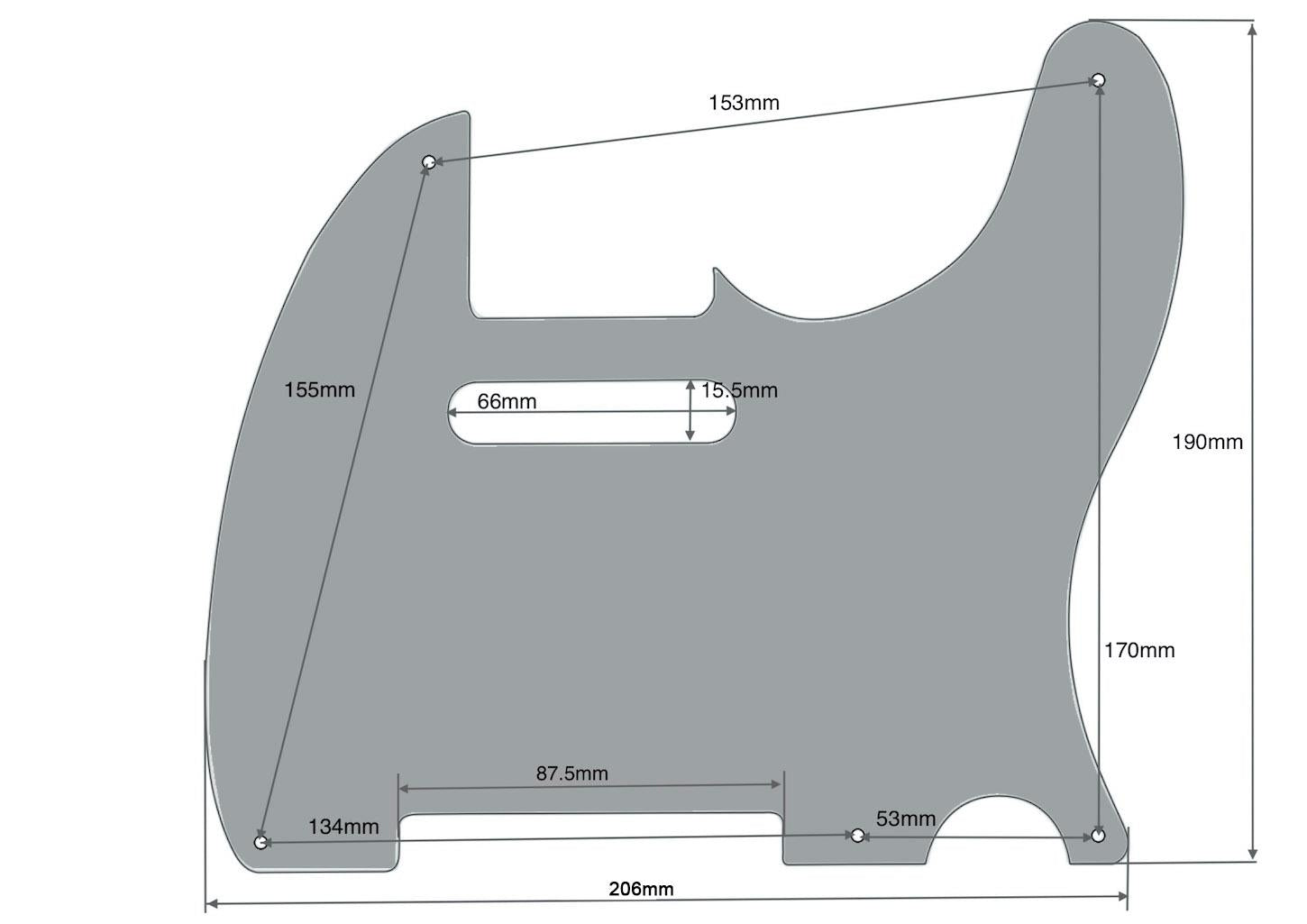

• Check diagram before purchasing to confirm compatibility
• Removable protective film attached

This scratchplate is meticulously designed for compatibility with a range of Telecaster models, including Fender USA, Mexican, and Japanese editions. However, owing to the nuances that can exist among different models, we strongly advise cross-referencing with our detailed diagram prior to making a purchase, ensuring a perfect fit and compatibility.
