Gotoh
Gotoh GE101Z Tailpiece - Height Adjustable
Shipping & Returns
Order before 3pm for same day despatch Monday-Friday
Free shipping on UK orders over £199*
Click & Collect available Mon-Fri until 4pm.
See our full shipping/returns options here
Product details

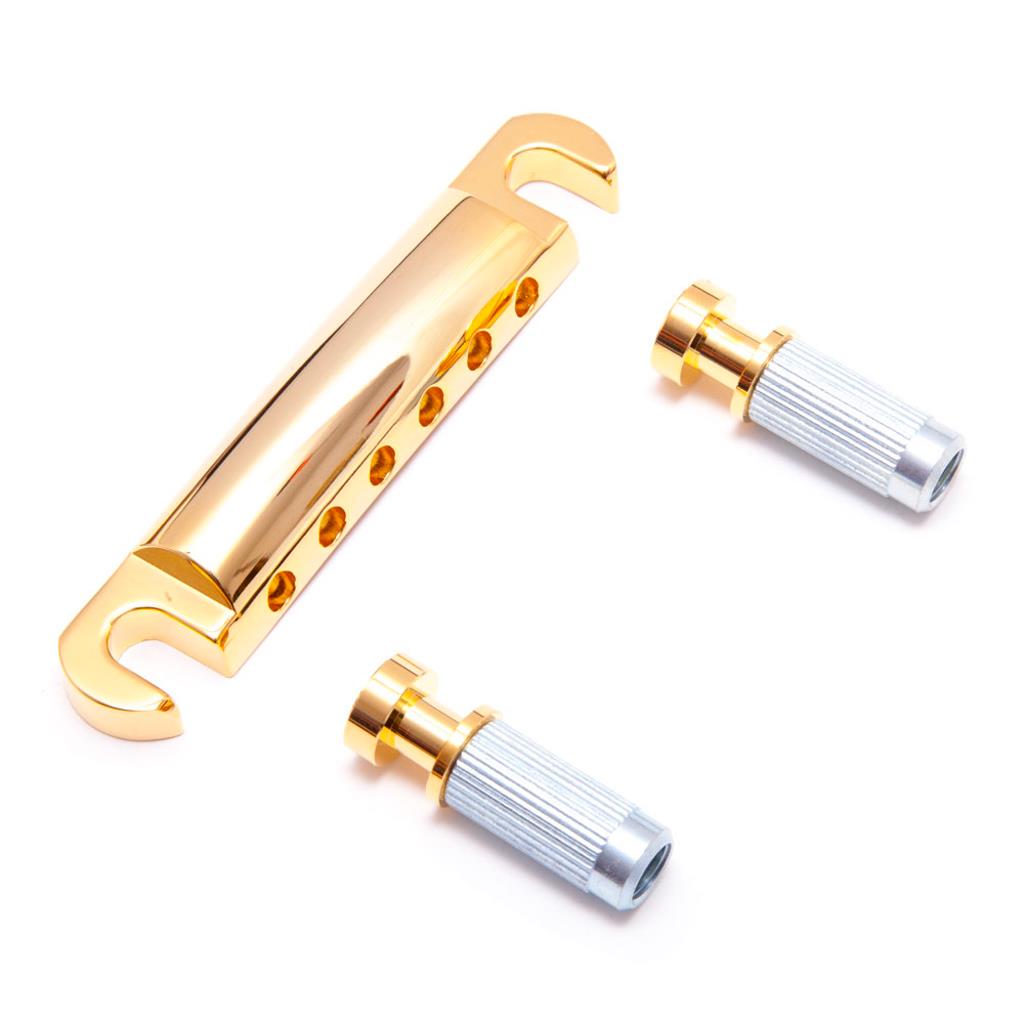

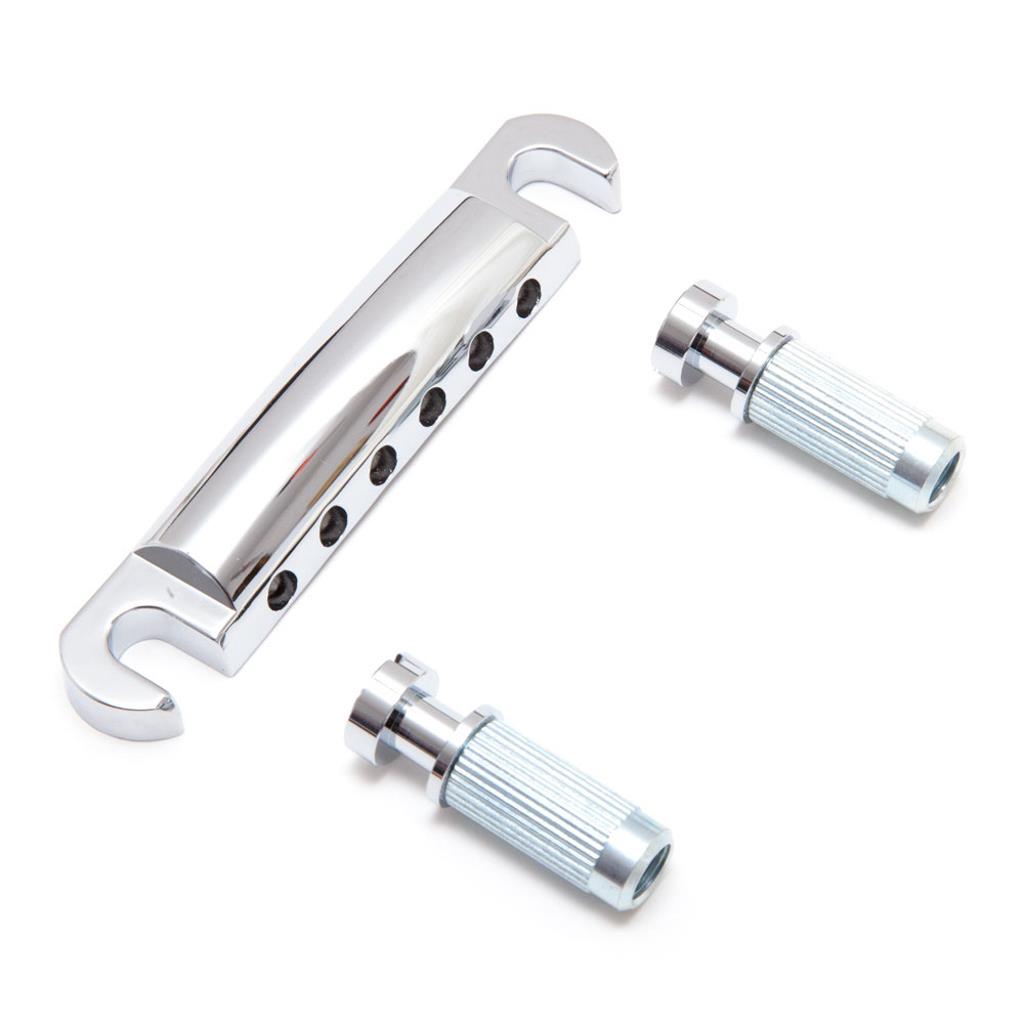

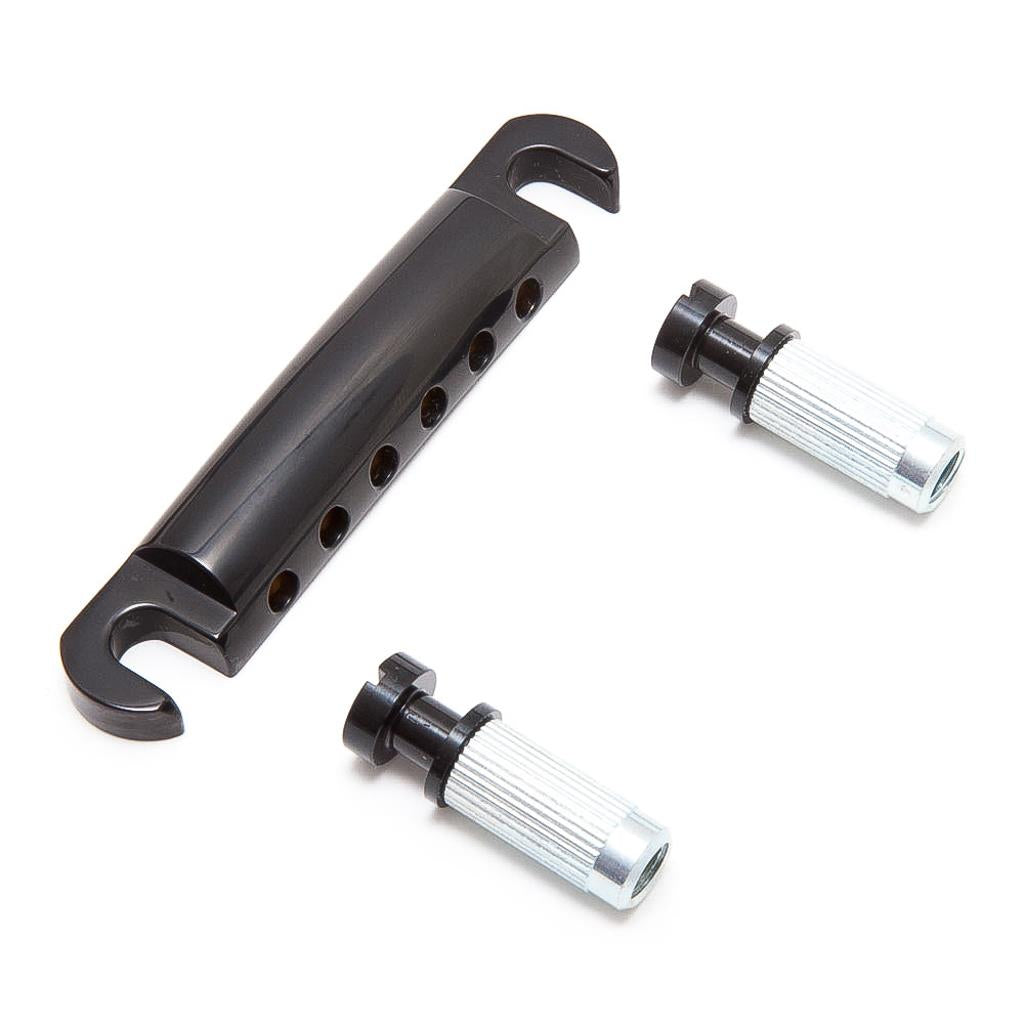

The Gotoh GE101Z is a traditional stop tailpiece designed for use with Tune-o-matic style bridges. Manufactured in Japan, it delivers precise machining, solid materials, and reliable string anchoring for both USA and metric-spec instruments.
The tailpiece features height-adjustable metric posts spaced 82mm apart (standard Gibson spacing) and mounts securely into steel body bushings. Brass studs provide strength and smooth adjustment, while the knurled steel anchors ensure a stable fit in the body.
For metric ‘import’ guitars such as Epiphone, Schecter, ESP LTD and similar models, the supplied 8mm threaded posts will screw directly into the majority of existing tailpiece bushings.
For USA imperial-spec guitars (for example a Gibson Les Paul), the Gotoh tailpiece body can be fitted onto the existing imperial studs.
The GE101Z supports both traditional rear stringing and front-feed top wrapping, allowing the tailpiece to be lowered fully against the body if preferred.

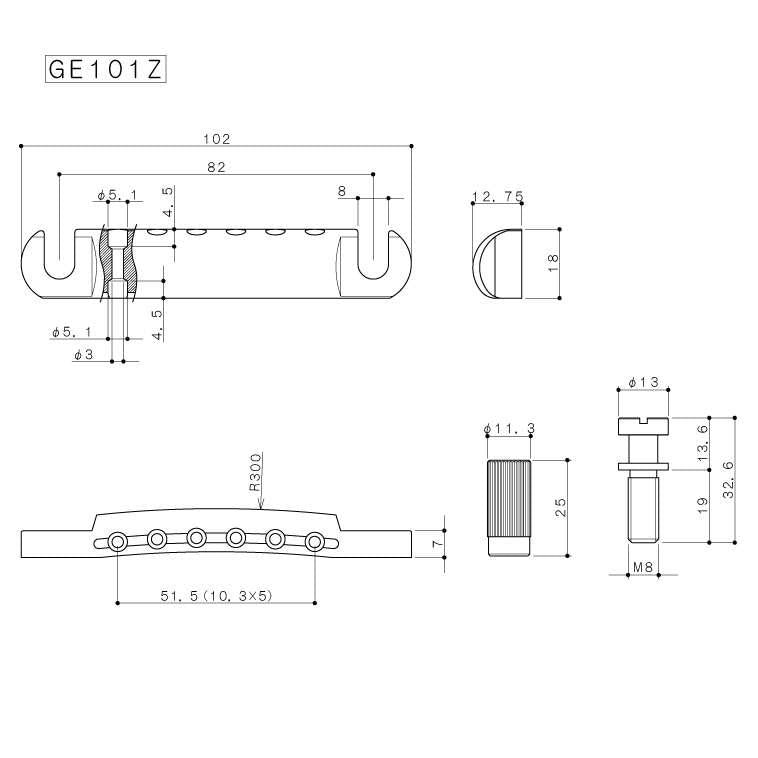

Specifications
- 82mm stud spacing (Gibson standard)
- Metric 8mm threaded mounting studs
- Height adjustable
- 11mm diameter knurled steel body bushings
- Brass studs / steel anchors
- Suitable for Gibson Les Paul and most metric import guitars
- Made in Japan
• Gibson/Epiphone Compatible
• Height adjustable
• Metric 8 mm threaded mounting studs
• Mounting studs spaced 82 mm apart
• Secure 11 mm diameter knurled body bushings
• Can be strung from the front or the rear of the tailpiece (top wrapping)
• Post/stud is machined from brass and the body bushing/anchor is steel
• Made in Japan
• Compatible with Left & Right Handed Guitars, including Epiphone Les Paul and SG
