Product details

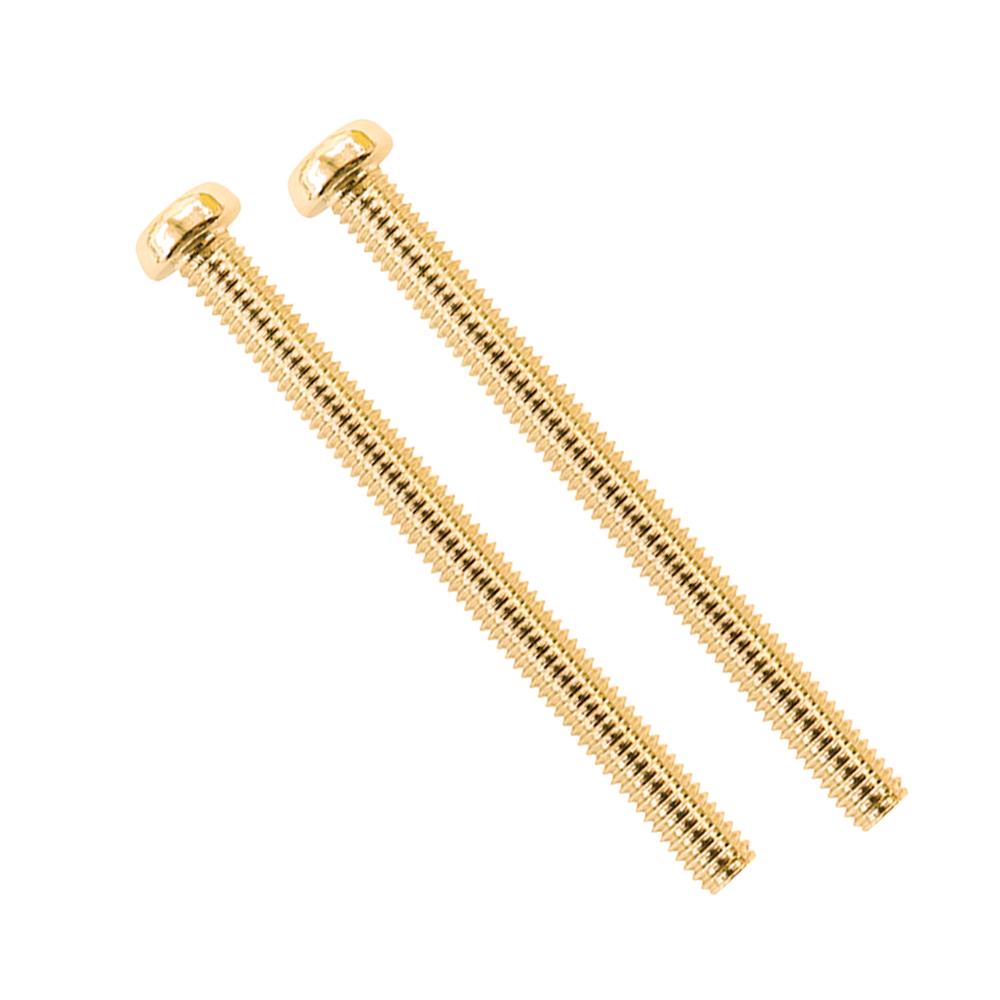

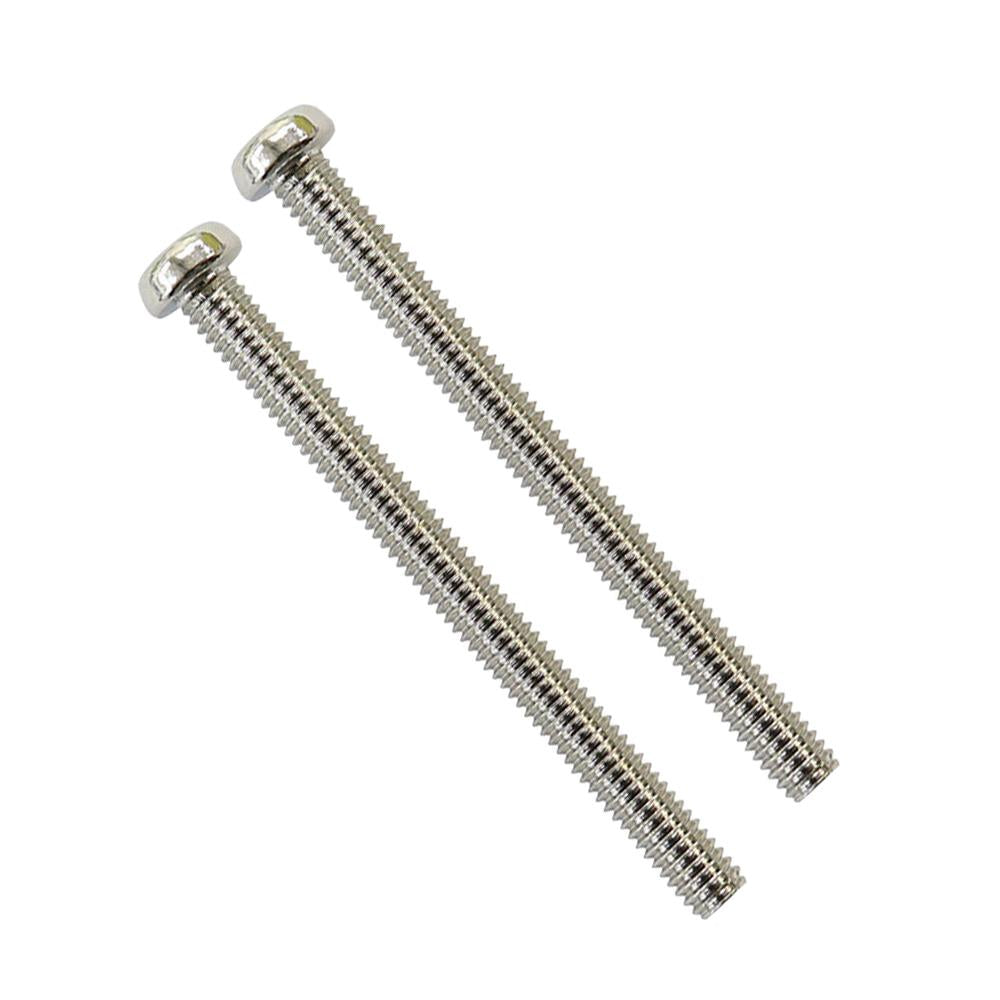

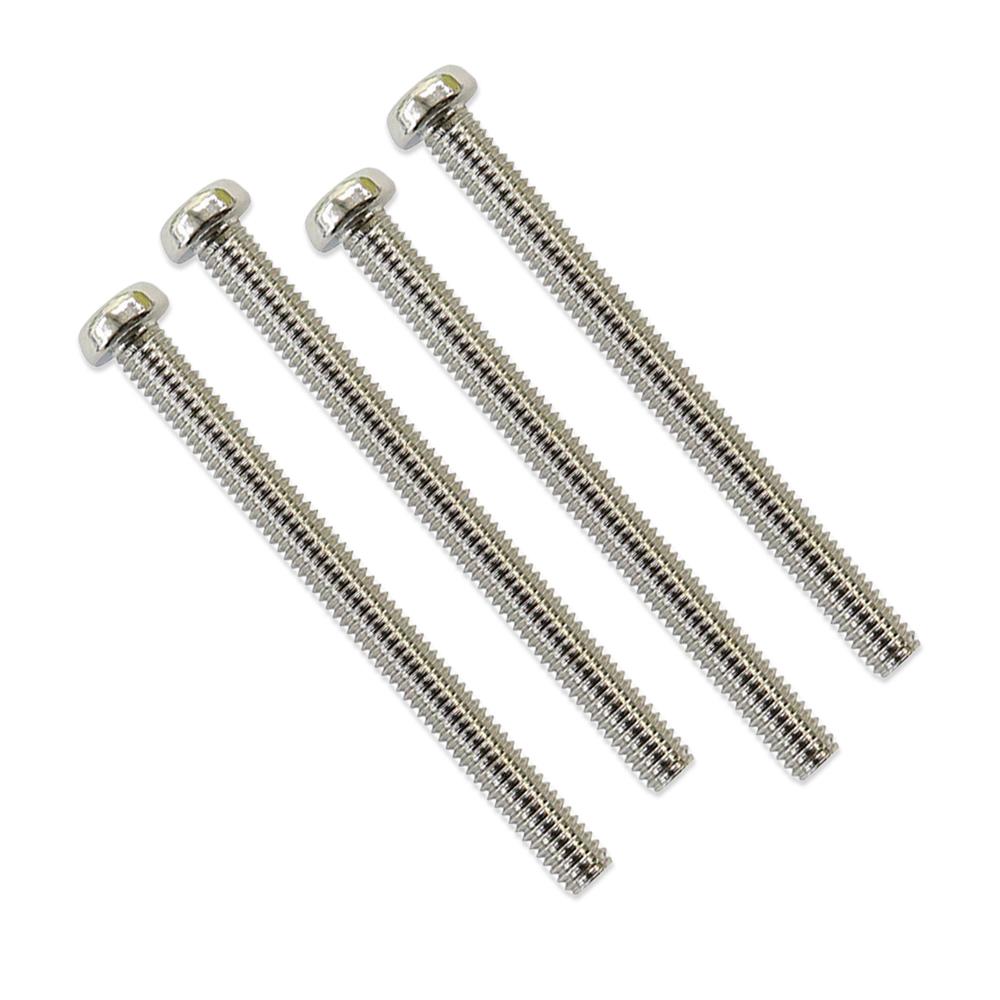

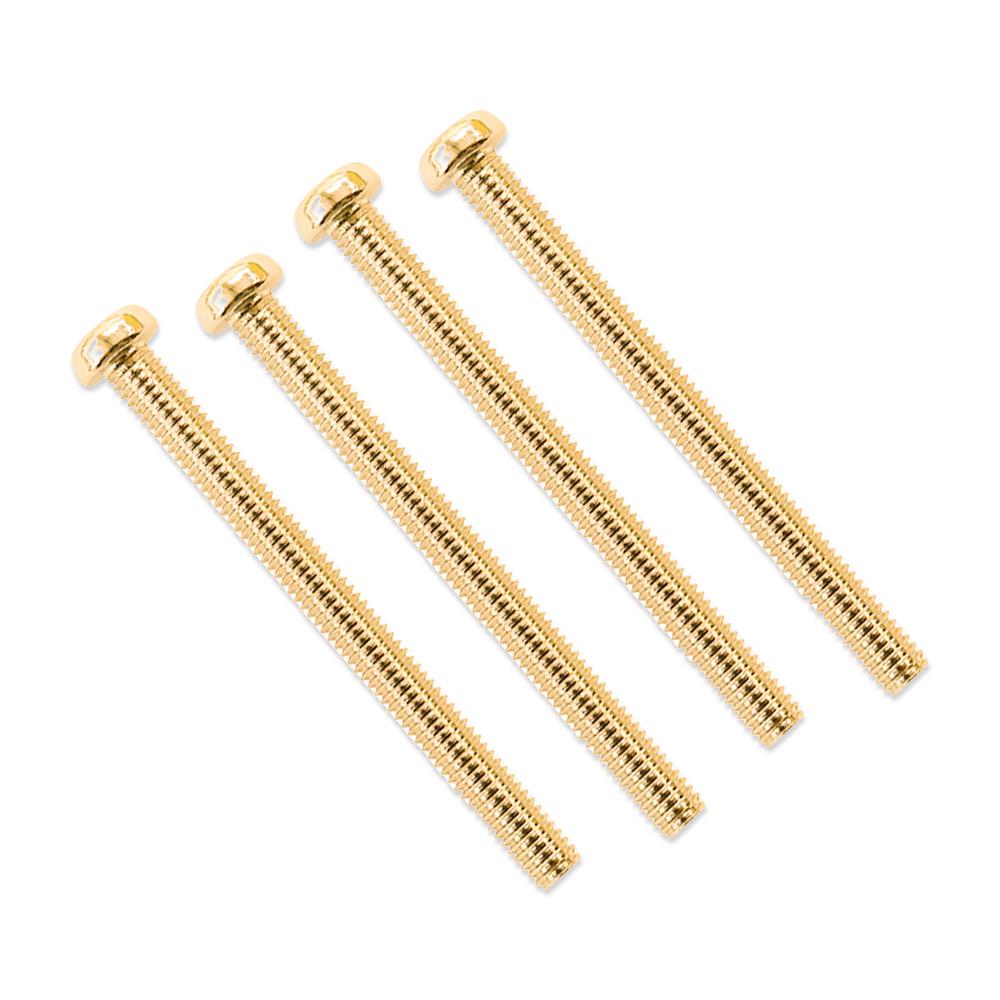

These humbucker height adjustment screws are designed for mounting pickups to pickup rings and are ideal as replacements for lost or damaged parts.
To install, insert the screw through the top of the pickup ring, slide a spring onto the screw, then thread it through the humbucker’s mounting tab. Turning the screw clockwise raises the pickup; turning it anticlockwise lowers it. The spring between the ring and pickup provides smoother adjustment.
These screws feature a Phillips pan (round) head and a 2.4 mm metric thread. They are not compatible with USA-made pickups such as Seymour Duncan or Gibson, nor with metric pickups that require a 3 mm thread.
• Head Diameter: 0.180" (4.57 mm)
• Head Type: Phillips Pan Head
• Overall Length: 1.311" (33.30 mm)
• Thread Length: 1.240" (31.50 mm)
• Threading: 3-48" × 1.25" (2.4mm × 31.50 mm)
• Metric threads - Not compatible with USA made pickups
• Metric threads, compatible with most non-USA made pickups. Please check sizing before ordering.
