Eric Johnson Wiring Kit for Stratocaster - Hand Built in the UK
Pickup currently unavailable

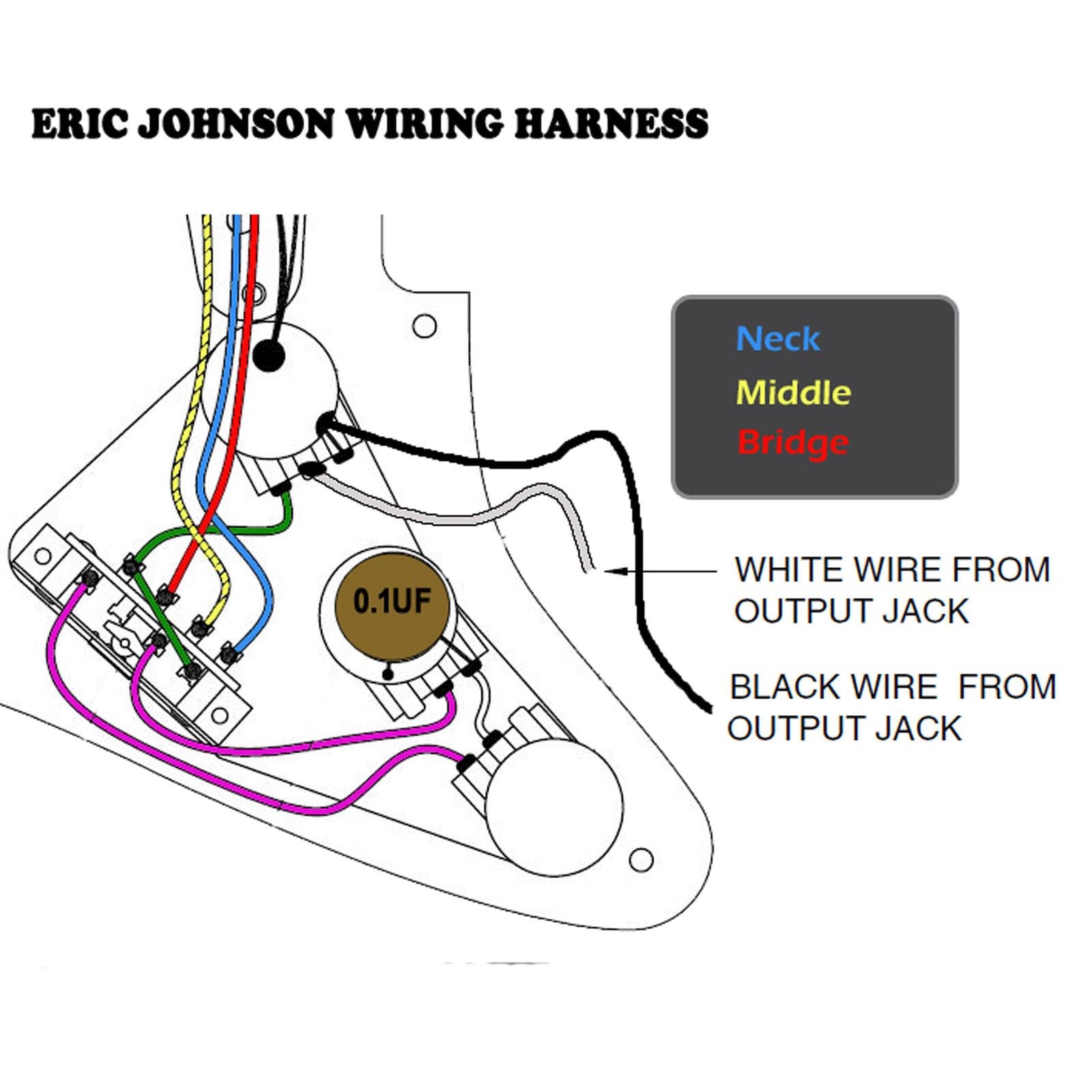

Introducing the Eric Johnson drop-in deluxe wiring harness
A replica of Eric's unusual wiring With authentic non-standard 300k Volume Pot & tone control on neck and bridge pickups only
Less load, more gain
Neck and brdgie pickups now have completely separate tone controls. This type of configuration removes the 'double-load' issue found in switch positions 2 & 4 on a typical strat. Combined with the higher value 300k volume pot, your pups will sound bright and 'quacky'.
Assembled using Eric's own "floating wire" method
A unique way of wiring each component which helps to reduce hum and other interference

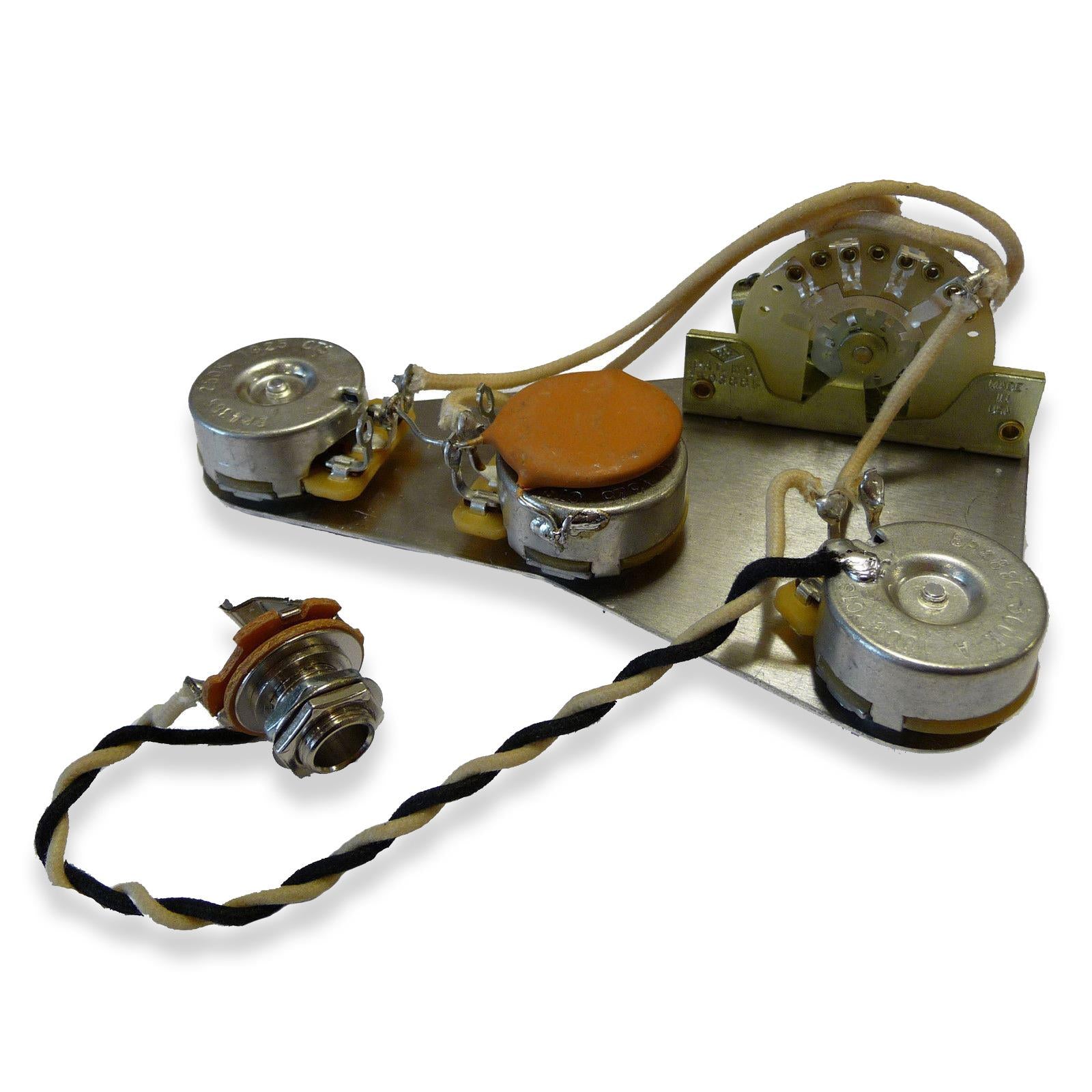

Contents of Eric Johnson wiring harness
- 1 x USA made CRL 5-way switch
- 1 x custom CTS 300k volume pot
- 2 x CTS 250k audio taper pots
- 1 x Genuine Sprague ceramic dic capacitor (0.1uf)
- Gavitt Vintage cloth covered wire (USA Made)
- 1 x Switchcraft 1/4" Mono output jack socket

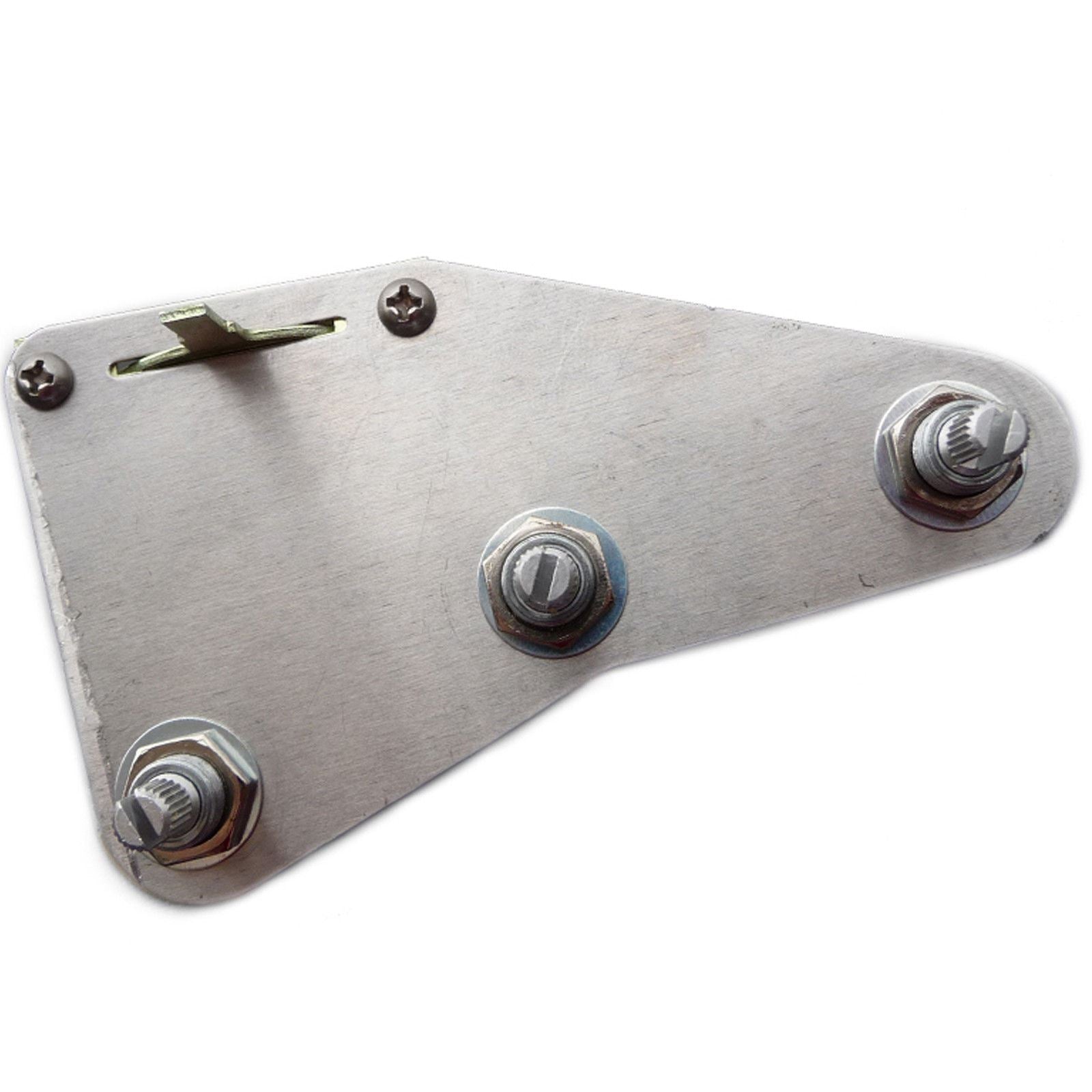

All fitted to a genuine Fender control shield (helps reduce hum, and eliminates the need for the 3 point wiring to the back of the pots)
Hand built in the UK
The kit is assembled by us here in the UK using high quality silver solder and USA made vintage cloth push-back wire. We even solder the output jack so the whole thing is ready to drop-in.
As the kit is fitted to an aluminium control shield there’s no need to dis-assemble the parts to fit them to your scratchplate. Simply add the whole thing to the underside of your scratchplate and it’s done!
Please note: These harnesses are built to order by us here in the UK so please allow 48 hours for us to assemble and despatch your order.
