CTS

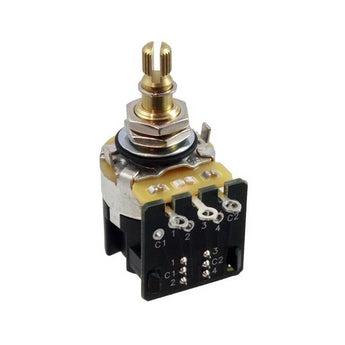

CTS 250K Push Pull Short Shaft Potentiometer - Audio Taper
Pickup available at Northwest Guitars
Usually ready in 1 hour
CTS Short Shaft Push Pull Pot - Audio Taper
These pots feature a unique push-pull design that allows them to function as both standard potentiometers and as a switch. When the potentiometer is pulled up, the switch is engaged, allowing for additional tonal options such as phase switching & coil tapping.
CTS push-pull pots are the ideal choice for guitarists and other audio electronics enthusiasts who demand the highest level of performance and tonal flexibility from their equipment.
Specifications
Shaft diameter - 0.235'' (5.95mm)
Thread - 3/8'' x 32
Thread height - 3/8'' (9.52mm)
Thread height - 3/8'' (9.5mm)
Required hole diameter - 3/8'' (9.52mm)
Cavity depth - 1'' (25.4mm)
24 spline to suit imperial sized control knobs
Shipping & Returns
Order before 3pm for same day despatch Monday-Friday
Free shipping on UK orders over £199*
Click & Collect available Mon-Fri until 4pm.
See our full shipping/returns options here
Additional product information
Split Shaft Potentiometer
Push Pull Pot
Value: 250K
Customer Reviews
CTS pots are my first choice so having these full size ones with push-pull is perfect for getting a consistent feel across all the controls. I also find the terminal board with its through holes easier to work with than pins but that’s very much a personal preference.
