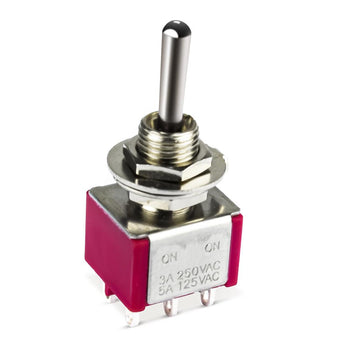

DPDT on-on Mini Toggle Guitar Switch for Coil Tapping/Phase Switching
Shipping & Returns
Order before 3pm for same day despatch Monday-Friday
Free shipping on UK orders over £199*
Click & Collect available Mon-Fri until 4pm.
See our full shipping/returns options here
Product details
This DPDT ON-ON mini toggle switch is a high-quality, compact switch designed for a wide range of guitar mods and electronic projects. With two independent circuits and two selectable positions, it’s ideal for functions like coil splitting, phase reversal, and series/parallel switching on dual humbucker setups.
When flipped, both sides of the switch toggle at the same time — allowing for more complex routing and control than a standard SPDT switch.
Features
- Type: DPDT (Double Pole, Double Throw)
- Switching: ON-ON (2-position)
- Latching toggle action— holds position until manually switched
- Terminals: 6 solder lugs (3 per pole)
- Panel hole required: 6 mm
Perfect for guitarists adding advanced wiring options or builders needing reliable control in compact spaces, this DPDT switch delivers smooth, consistent performance.
• DPDT (Double Pole, Double Throw)
• ON-ON (2-position) switching
• 6 solder lugs (3 per pole)
• Requires 6mm mounting hole
• Includes: Mounting nut, anti-rotation washer, and shakeproof washer
• 11mm lever length
• 12.7 x 11.43 x 21.72 mm
