Alpha
Alpha 500K Blend Pot Split Shaft for Strat Tele Ibanez etc
Shipping & Returns
Order before 3pm for same day despatch Monday-Friday
Free shipping on UK orders over £199*
Click & Collect available Mon-Fri until 4pm.
See our full shipping/returns options here
Product details

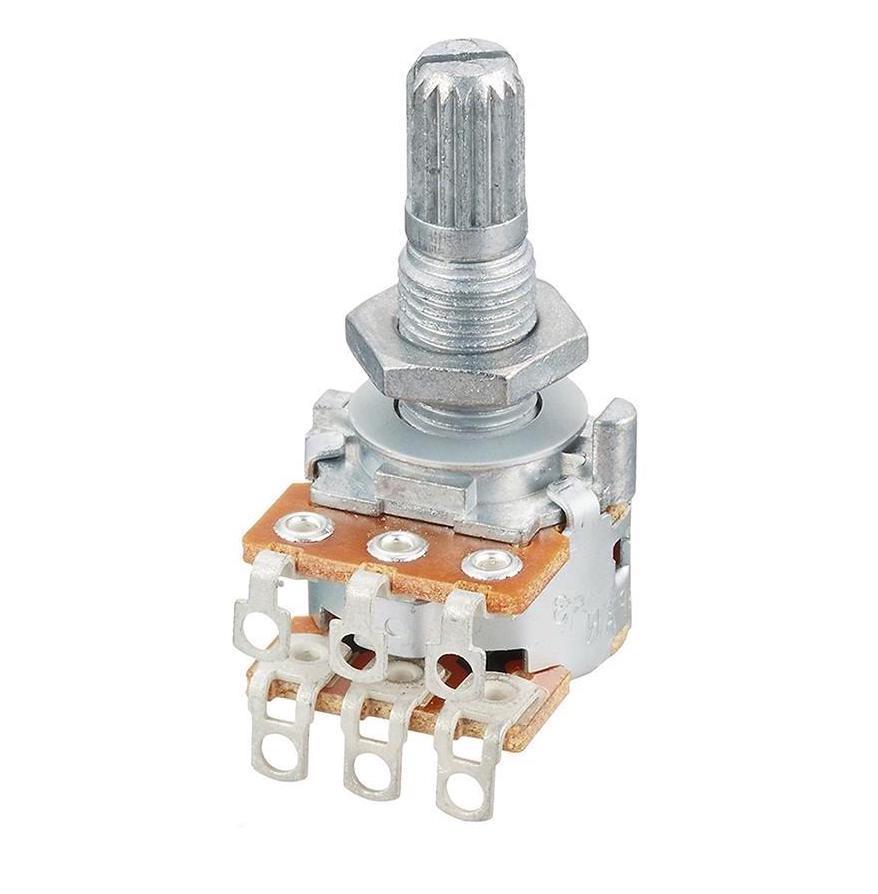

500K Blend Potentiometer — Audio Taper
Used to control the signal mix from two pickups, panning from one to the other. A centre detent gives a positive click at the mid-point, so you can find a perfectly balanced 50/50 blend by feel — no guesswork, even mid-song.
Typically used in conjunction with single coil pickups.
Specifications
- Resistance: 500K
- Taper: Audio
- Shaft: 6mm split shaft
- Bushing diameter: 7.8mm / .30"
- Bushing length: 10mm / .39"
- Overall shaft & bushing height: 18.2mm / .71"
- Includes: Dress washer and mounting nut
- Made in: Korea
Split Shaft Potentiometer
Full Size Pot
Value: 500K
