Product details

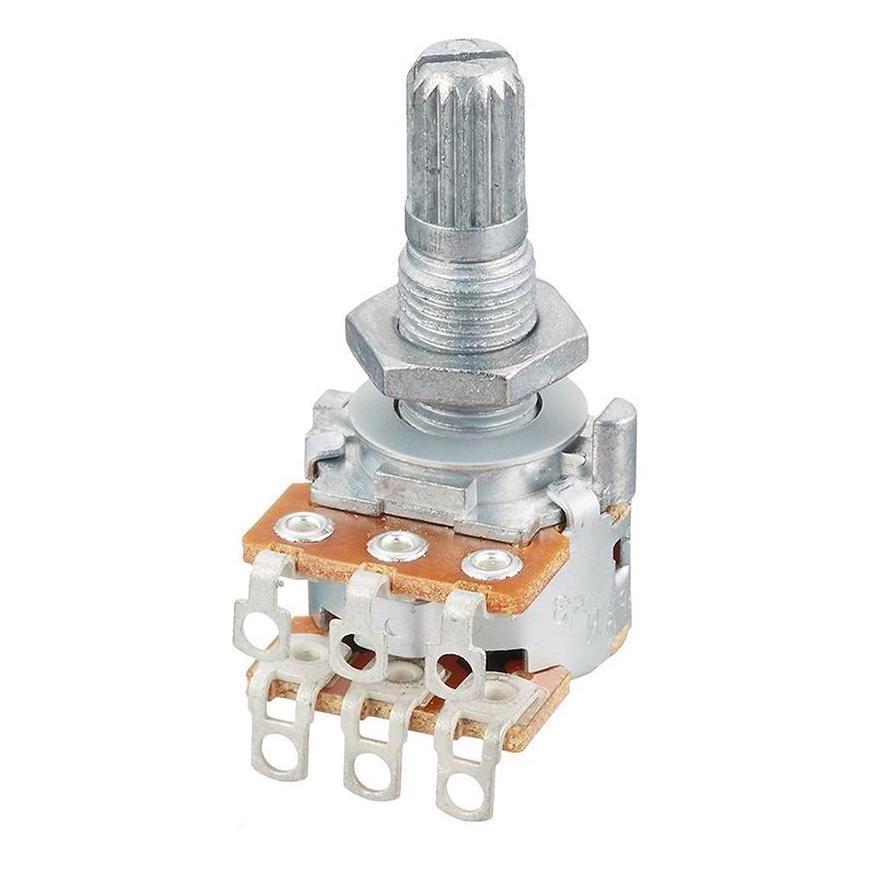

250K Blend Potentiometer — Audio Taper
Used to control the signal mix from two pickups, panning from one to the other. A centre detent gives a positive click at the mid-point, so you can find a perfectly balanced 50/50 blend by feel — no guesswork, even mid-song.
Typically used in conjunction with single coil pickups.

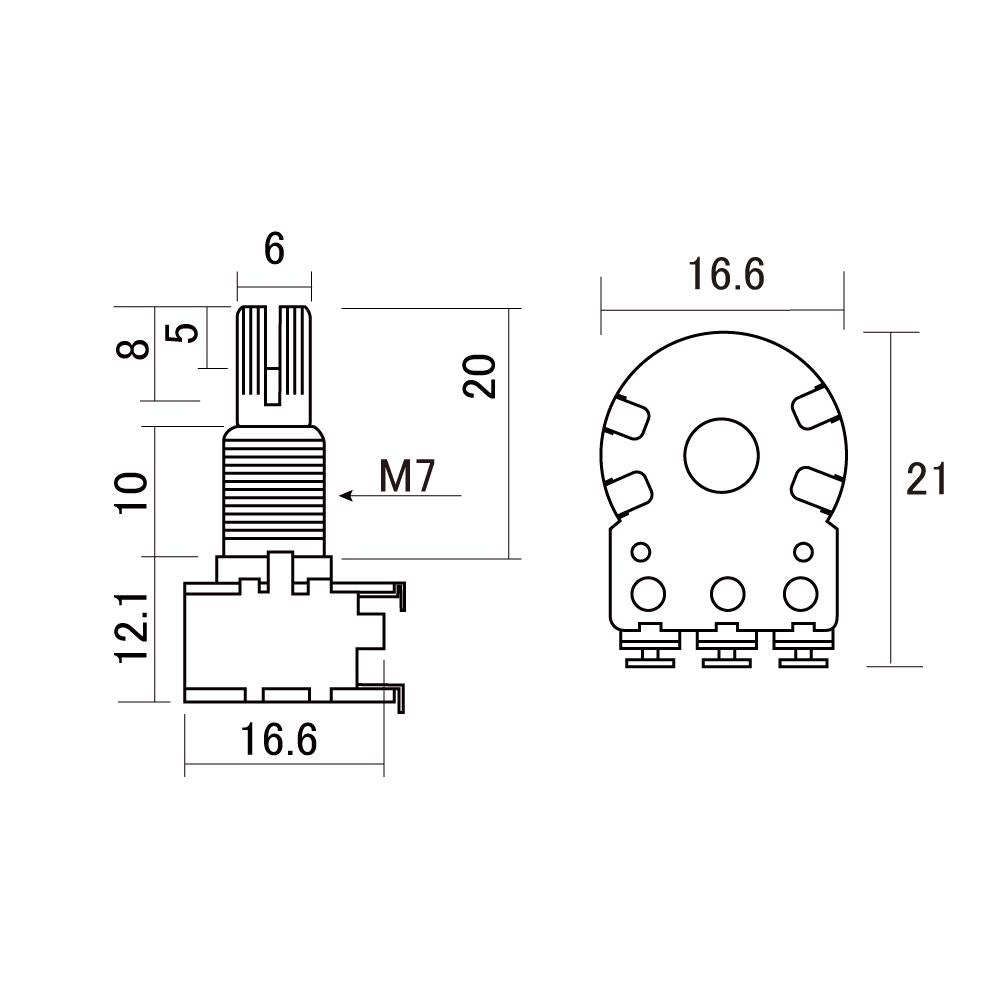

Specifications
- Resistance: 250K
- Taper: Audio
- Shaft: 6mm split shaft
- Bushing diameter: 7.8mm (.30")
- Bushing length: 10mm (.39")
- Overall shaft & bushing height: 18.2mm (.71")
- Includes: Dress washer and mounting nut
- Made in: Korea
Split Shaft Potentiometer
Full Size Pot
Value: 250K
