Esquire Eldred Wring Kit

This Esquire® wiring kit is an excellent upgrade for many imported models and is ideal for building your own guitar or enhancing the electronics of DIY guitar kits.

All of our kits come with an easy to follow wiring diagram.

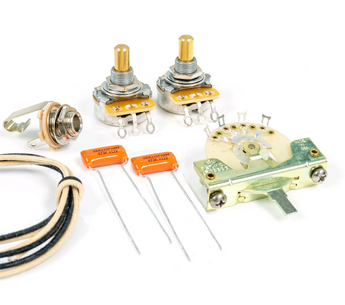

The Equire Wiring Kit includes:

• 2 x 250k Matched audio taper pots (10% tolerance)
• 2 x Capacitors (Orange Drop or Paper in Oil)
• 1 x CRL 3 way rotary switch
• 2ft black cloth wire
• 2ft white cloth wire
• 1 x Switchcraft USA 1/4'' jack socket

Paper-in-Oil Cap Upgrade

Want an extra vintage tone upgrade? Add Paper-in-Oil caps instead of Orange Drop. Paper in Oil (PIO) capacitors are an older technology, highly sought after primarily due to their use in many vintage instruments such as 50s era Gibsons. The capacitor is literally filled with paper and a special oil before being sealed in thermoplastic, delivering a darker, warmer and smoother tone.

Esquire Eldred Mod Switch Controls

Position #1
The rear position functions like a standard Esquire. The pickup goes through the volume control only, bypassing the tone control for a hotter, louder lead sound with added highs.

Position #2
The middle position is also similar to a standard Esquire. The pickup goes through both the volume and tone controls, producing a slightly warmer tone than Position #1.

Position #3
The pickup goes through a 0.0047uF capacitor and the volume control, bypassing the tone control. This replaces the fixed treble roll-off network, creating the popular “cocked-wah” effect.

Note: You can experiment with different capacitor values to alter to the tone in position 3
