1/4" Mono/Stereo Input Jack/Strap Button for Electro Acoustic Guitars

£5.99

Tax included. Shipping calculated at checkout.

5.0

LJ35-BK

Colour: Black

Black Chrome Gold

Product variants

Quantity

Pickup available at Northwest Guitars

Usually ready in 1 hour

Order by 3pm for same day despatch (Mon-Fri) Find out more

🚚 Order within the next 2 hours, 15 minutes for delivery by 28 Nov, 2024.

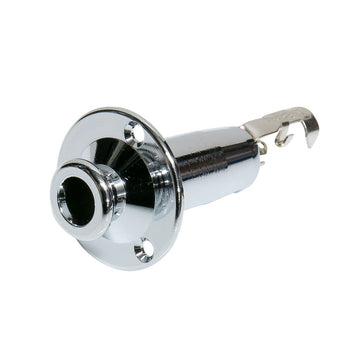

LJ35 Acoustic Output Jack/Strap Button is a dual-function marvel designed to seamlessly integrate with a variety of acoustic guitar models. Offering a combined input socket and strap button, this unit elevates the convenience factor by eliminating the need for separate components.

Features:

Serves as both an input socket and a strap button.
The LJ35 can be wired as either a stereo or a mono jack.
Provided with colour-matched screws.
Requires a 1/2" (12.7mm) pilot hole.

Mono Wiring
Longer terminal - ground
Shorter Terminal - Live

Stereo Wiring
Longer Terminal - Sleeve
MediumTerminal - Ring
Shorter Terminal - Tip

Shipping & Returns

Order before 3pm for same day despatch Monday-Friday

Free shipping on UK orders over £199*

Click & Collect available Mon-Fri until 4pm.

See our full shipping/returns options here

Colour: Black

Black Chrome Gold

Additional product information

Excellent way to plug in acoustic

I added a sound-hole pickup to my 1984 Gibson Blue Ridge dreadnought style flat top but it had an ugly external cable. I chose to bring this out to an end-pin socket, but didn't want one that required fixing via a nut inside. This button let me bring the cable out through the drilled hole to do the soldering, then screws to the outside of the guitar - I chose a black one and it looks really good.
